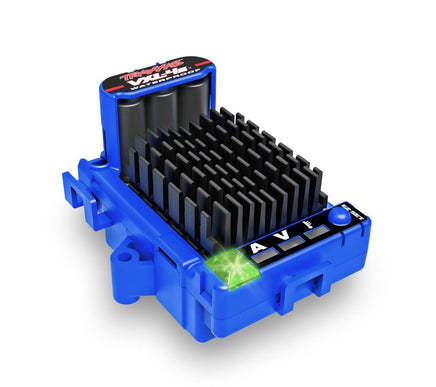

The Traxxas Velineon® VXL-4S Waterproof Brushless ESC is designed for high-output 2-4S LiPo power while maintaining dependable control in all conditions. Its rugged construction, waterproof design, and integrated protection circuits support demanding off-road use in both the Raptor-R and the Jato. Real-time telemetry through Traxxas Link™ (TRA6511 - sold separately) provides live data, and an LED status system keeps operation clear and intuitive. A large heatsink supports an optional cooling fan for enhanced thermal management.
About the VXL-4S
Control & Configuration
Driving flexibility comes from three selectable profiles: Sport for full forward/brake/reverse control, Race for streamlined forward/brake response, and Training Mode™ for reduced-power operation. Setup is handled through the Traxxas EZ-Set® one-button system, while a selectable 7.4V high-voltage BEC and 12-gauge wiring support consistent performance across different vehicle setups. The ESC integrates safety and convenience features without requiring complex adjustments.
Features:
- 2-4S LiPo compatibility
- Traxxas EZ-Set® one button setup
- Selectable 7.4 volt high-voltage BEC
- Three programmable drive profiles
Includes:
- (1) Velineon® VXL-4S Waterproof Brushless Electronic Speed Control
Specifications:
| Suggested Application | 1/10 & 1/8 Scale |
|---|---|
| Motor Type | Brushless - Sensorless |
| Input Voltage | 2-4S LiPo (7.4-14.8V) |
| Continuous Current | - |
| Burst Current | - |
| Dimensions (LxWxH) | - |
| Weight | - |
| Motor Limits | - |
| BEC Voltage | Selectable 7.4V |
| BEC Continuous Current | - |
| BEC Peak Current | - |
| Motor Connector | - |
| Battery Connector | Traxxas iD High-Current Connector |
| Motor Wire | 12AWG |
| Battery Wire | 12AWG |
