High-performance brushless motor for RC vehicles The SURPASS HOBBY KK series motor delivers powerful performance for 1/12 to 1/24 RC cars and trucks, ensuring smooth and responsive operation on various terrains and driving conditions.
Multiple KV options for customized speed control.
Waterproof design for enhanced durability Featuring a waterproof construction, this motor resists moisture and dust, making it ideal for outdoor use in wet or dusty environments without compromising performance or lifespan.
Robust metal housing for long-term reliability Built with a metal material body, the motor provides superior heat dissipation and mechanical strength, ensuring stable operation under high load and extended use.

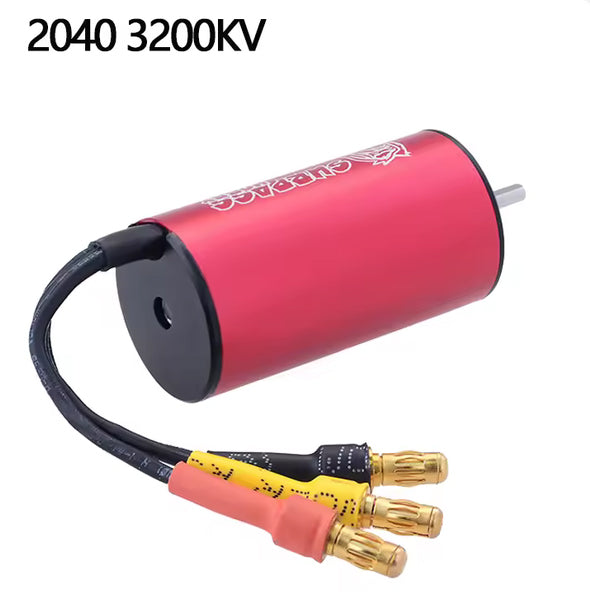

2040 Specifications:
Brand: SURPASS HOBBY
Series: KK
Name: 2040 RC Motor
Color: red
KV(RPM/Volt): 2280KV/3200KV/3900KV/4480KV (all KV models listed, the one you are buying is in the TITLE of the item)
Watt: 220
Max RPM: 50000
Max voltage: <12.6V
Max amps: 16A
Rotor poles: 4
Diameter: 20mm
Length: 37mm
Shaft: 2.3mm
Shaft length: 10mm
Connector: 3.5mm gold
Weight:49g
1/12 1/14 1/16 1/18 1/20 1/24 RC Car TruckNOTE: THIS MOTOR HAS A VERY SHORT 10MM Motor Shaft! In order for it to work on a Mini-B or Mini-T, it requires a very narrow pinion gear - we use these: https://www.amazon.com/dp/B0F6VMV53Y?ref=fed_asin_title&th=1
