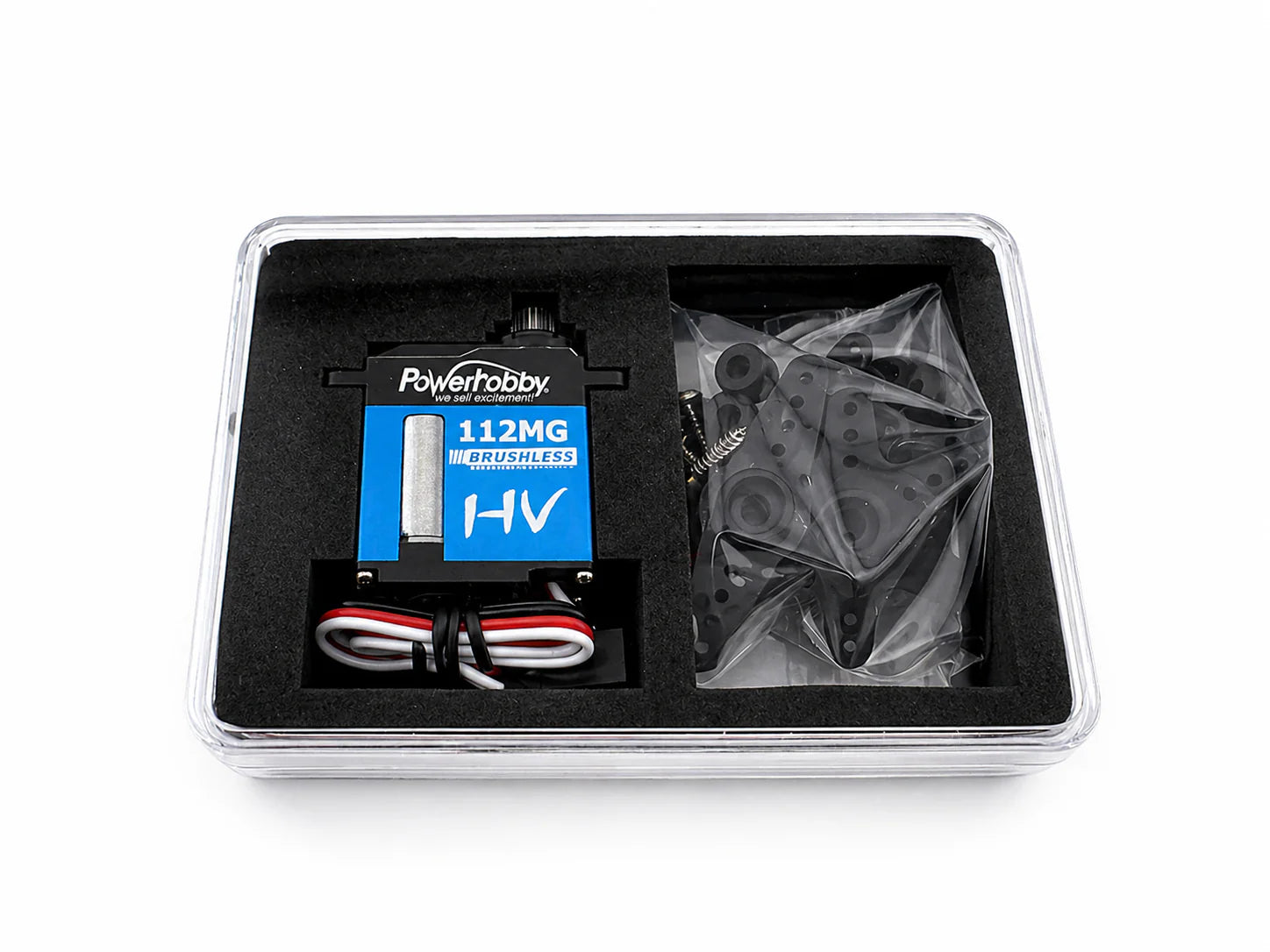

The 112MG is a compact, high-output digital servo designed for drivers who need maximum speed, strong torque, and precise control in a lightweight package. Built around a brushless motor and supporting high-voltage operation up to 8.4V, the 112MG delivers smooth, consistent performance across a wide range of applications.
With stall torque reaching up to 12.0 kg-cm (167 oz-in) at 8.4V and an ultra-fast 0.050 sec/60° transit speed, this servo is ideal for high-response steering setups where accuracy and reaction time matter most. A low 2µs deadband ensures precise centering and exceptional control feel.
Internally, the 112MG features hardened steel gears, dual ball bearings, and a FET-driven brushless motor, providing excellent durability and long service life under demanding conditions. The servo is fully programmable, allowing users to fine-tune parameters such as direction, travel, and response to suit their vehicle and driving style.
Weighing just 26 grams and measuring 25.6 × 12 × 28.9 mm, the 112MG offers an outstanding power-to-size ratio, making it an excellent choice for 1/12 scale on-road, off-road, and lightweight racing platforms where speed, torque, and reliability are critical.

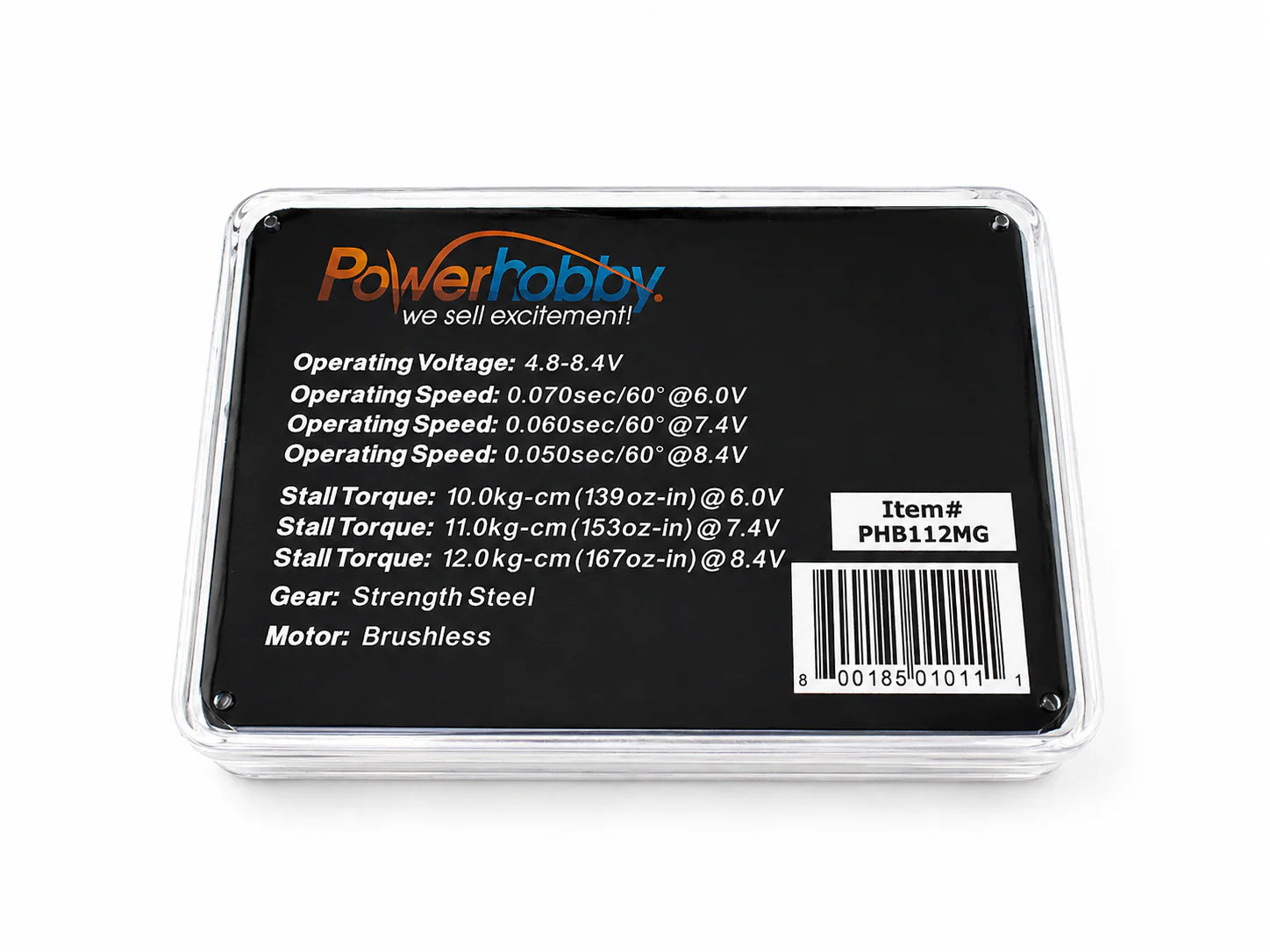

Specs:
Stall Torque
- 12.0 kg-cm (167 oz-in) @ 8.4V
- 11.0 kg-cm (153 oz-in) @ 7.4V
- 10.0 kg-cm (139 oz-in) @ 6.0V
- 8.5 kg-cm (118 oz-in) @ 4.8V
Operating Speed
- 0.050 sec/60° @ 8.4V
- 0.060 sec/60° @ 7.4V
- 0.070 sec/60° @ 6.0V
- 0.085 sec/60° @ 4.8V
