Small in size but big on performance, the Maverick FLX28-2S25 Brushless ESC delivers smooth, reliable power for micro RC vehicles, making it the perfect budget-friendly upgrade for boosting speed, control, and efficiency in any 2S brushless setup.
About the FLX28-2S25 25A Brushless ESC
Compact Brushless Power

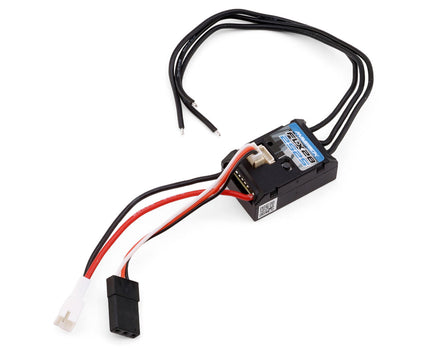

The Maverick FLX28-2S25 25A Brushless ESC packs impressive performance into a compact design, making it an ideal upgrade or replacement for Microbe SC Flux and Microbe Flux platforms as well as other compatible micro RC vehicles. Designed for 2S LiPo operation with a steady 25A continuous current output, it delivers smooth, responsive power to 16-size brushless motors, while the built-in 6V/1A BEC ensures consistent electronics performance. Its ultra-small footprint allows easy installation in tight spaces, making it a budget-friendly, reliable choice for boosting power and control in small-scale setups.
Features:
- Supports 2S LiPo operation
- Delivers 25A continuous current output
- Designed for 16-size brushless motors
- Built-in 6V/1A BEC for electronics
- Compact size fits tight micro chassis
- Budget-friendly and reliable performance
Includes:
- (1) FLX28-2S25 25A Brushless ESC
- (1) Manual
Specifications:
| Suggested Application | 1/24-1/28 |
|---|---|
| Type | Brushless |
| Input Voltage | 2S LiPo (7.4V) |
| Continuous Current | 25A |
| Burst Current | - |
| Dimensions (LxWxH) | 0.88x0.49x0.39in (22.6x12.5x10.1mm) |
| Weight | 0.21oz (6g) |
| Motor Limits | - |
| BEC Voltage | 6V (Fixed) |
| BEC Continuous Current | 1A |
| BEC Peak Current | - |
| Motor Connector | Solder |
| Battery Connector | PH 2.0 |
| Programmable | No |
