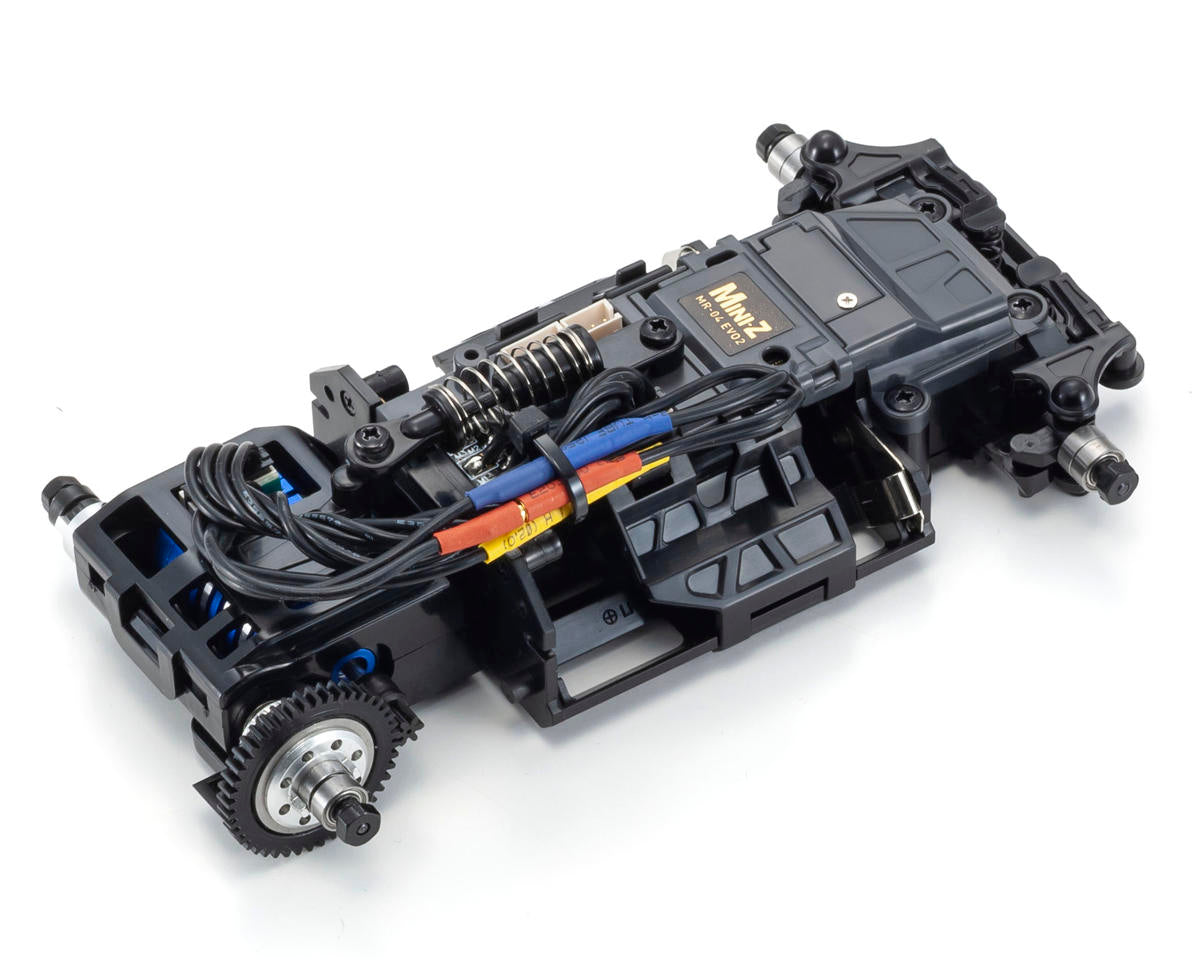

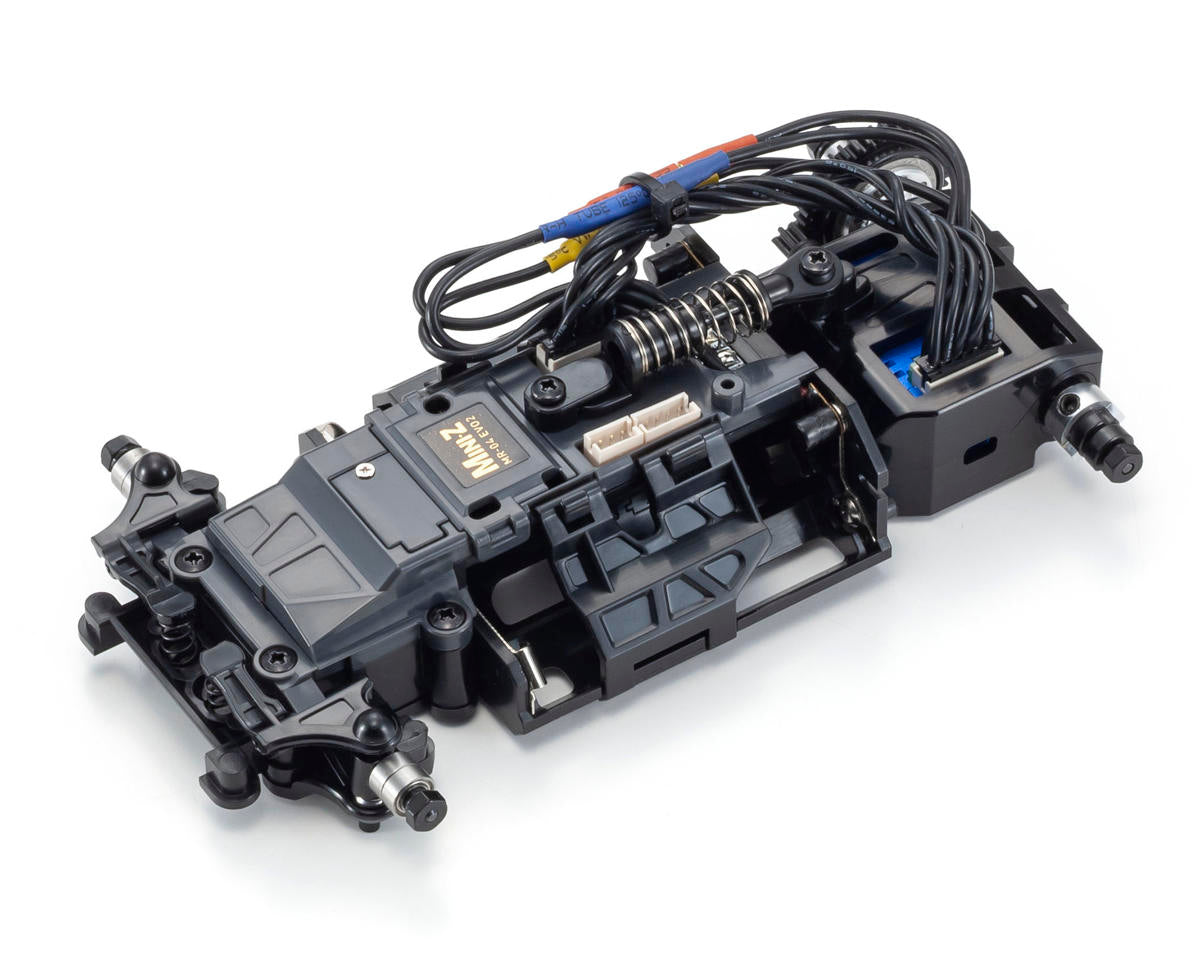

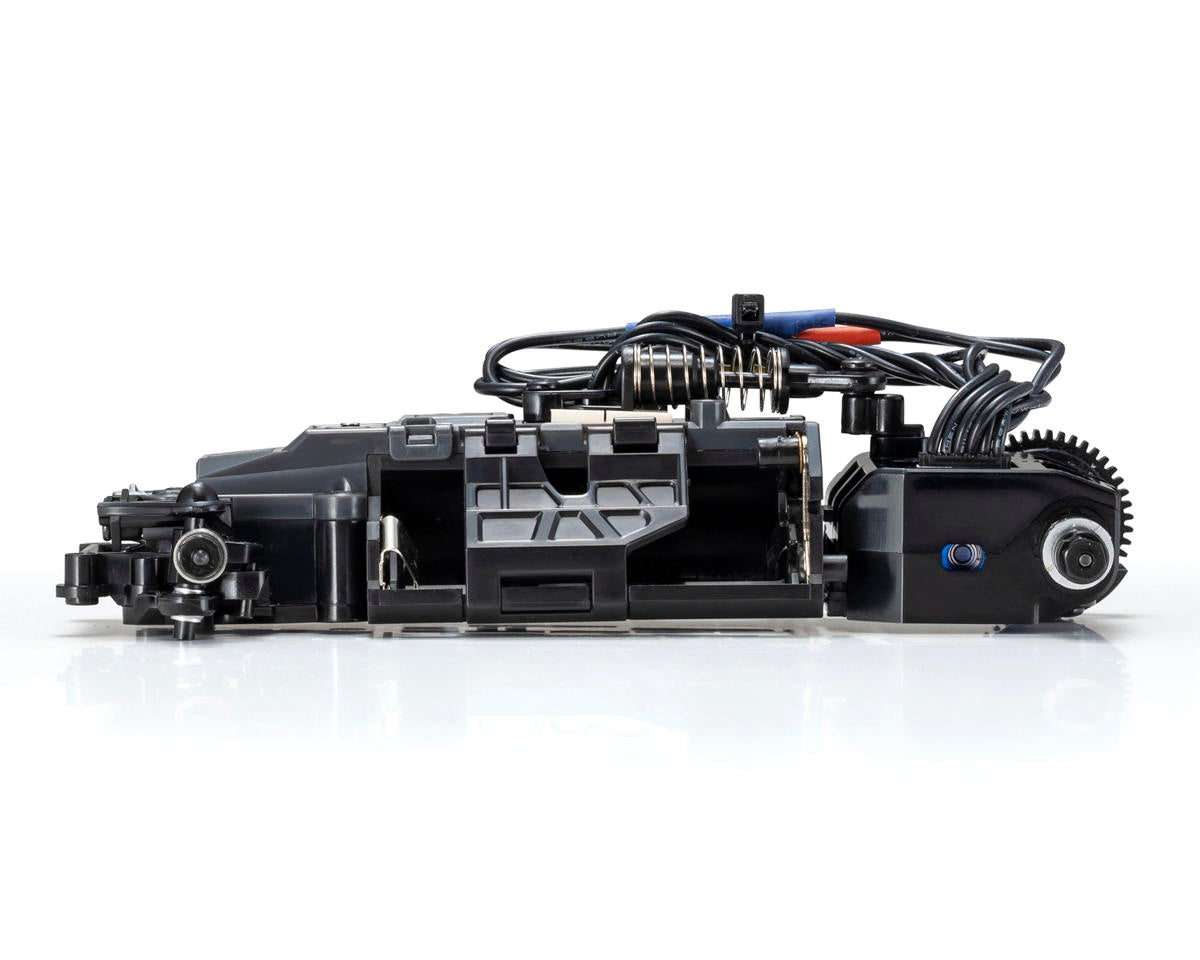

Kyosho MR-04 EVO2 Mini-Z W-MM Brushless Chassis Set (5600kV)

The Kyosho MR-04 EVO2 Mini-Z chassis represents a major evolution in Mini-Z performance, delivering cutting-edge technology in a compact racing platform. Redesigned for the first time in over a decade, this chassis builds on the proven MR-03 layout while introducing significant upgrades in handling, speed, and efficiency. With a sensored brushless motor system and refined suspension geometry, it offers precise control and competitive-level tuning. Designed for serious racers, the MR-04 EVO2 provides the ultimate foundation to build and customize your Mini-Z setup.

About the MR-04 EVO2 Mini-Z Chassis Set

Next-Generation Brushless Performance

At the core of the MR-04 EVO2 is its advanced sensored brushless motor system, delivering smooth throttle response and improved efficiency. The updated control unit supports motor RPM adjustments via the I.C.S. Setting Manager, allowing drivers to fine-tune performance for different racing classes. High-speed communication capability significantly reduces signal latency, resulting in faster and more precise control inputs. This system ensures the chassis is competition-ready and compliant with modern Mini-Z racing standards.

Redesigned Front Suspension & Precision Handling

The MR-04 EVO2 introduces the high-rigidity Front Suspension Arm 2.0 along with a newly engineered front knuckle featuring an integrated kingpin. This design improves camber stability and provides smoother suspension movement for consistent cornering performance. Revised caster and trail geometry deliver more linear steering response, enhancing driver confidence on technical tracks. Combined with adjustable tread and wheelbase options, the chassis allows precise setup tuning for different bodies and racing conditions.

Low Center of Gravity & Efficient Drivetrain

A lower battery mounting position using AAA cells reduces the center of gravity, improving stability and cornering speed. The inclusion of a ball differential ensures smooth power distribution between the rear wheels while maintaining traction under load. All seven ball bearings feature a 3mm internal diameter to reduce rotational resistance and maximize drivetrain efficiency. Together, these elements create a balanced, responsive chassis capable of high-level racing performance.

Features:

• Sensored Brushless Motor System
• MR-04 EVO2 Updated Chassis Design
• Front Suspension Arm 2.0 Included
• Integrated Kingpin Front Knuckle Design
• Adjustable Wheelbase And Front Tread
• Low Center Of Gravity Battery Layout
• Ball Differential Included
• High-Speed Communication Control Unit
• Full Ball Bearing Specification (3mm ID)
• Compatible With I.C.S. Setting Manager
