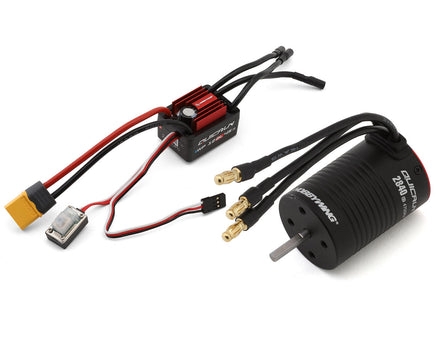

The Quicrun 12BL45 G2 Brushless ESC and 2840SL G2 Motor 1/12 Combo from Hobbywing is a compact and powerful brushless system designed for small-scale RC vehicles. Built for 1/12 and 1/14 on-road and off-road models, this combo delivers efficient power, smooth throttle response, and dependable durability. The updated G2 ESC features a smaller footprint with upgraded electronics for improved servo performance and easier installation. Paired with the efficient 2840SL G2 motor, this system provides strong acceleration and consistent performance for both racing and everyday driving.
About the Brushless Combo
Compact ESC With Advanced Efficiency
The Quicrun 12BL45 G2 ESC utilizes intelligent freewheeling technology to improve drive efficiency while reducing operating temperatures. This advanced control system helps maintain stable performance and smooth throttle response even during demanding runs. The redesigned housing is more compact than previous generations, making it easier to install in tight chassis layouts and simplifying wire management. This combination of size and performance makes the ESC a versatile solution for small-scale vehicles.
Upgraded BEC For Modern Servos
The built-in BEC has been significantly upgraded to deliver 2A continuous current and up to 4A peak output, providing reliable power for modern high-torque servos. The selectable output voltage of 6V or 7.4V allows drivers to match the ESC to their servo requirements for faster response and improved steering precision. This enhanced power delivery ensures consistent control and responsiveness during aggressive driving. The result is smoother handling and improved driving confidence.
Durable Motor For Demanding Conditions
The included 2840SL G2 brushless motor is designed with durability and efficiency in mind. High-quality materials such as 0.2mm silicon steel laminations, high-temperature resistant enameled wire, and precision bearings help ensure long-lasting operation. The motor’s IP56 rating offers protection from dust and moisture, making it well suited for off-road vehicles operating in harsh environments. Pre-soldered gold-plated 3.5mm connectors provide convenient plug-and-play installation while maintaining excellent electrical conductivity.
Features:
- Quicrun 12BL45 G2 Brushless ESC Included
- 2840SL G2 High-Efficiency Brushless Motor
- Designed For 1/16 And 1/18 Scale RC Vehicles
- Intelligent Freewheeling Technology
- Compact ESC Design For Easy Installation
- 2A Continuous / 4A Peak BEC Output
- Selectable 6V Or 7.4V BEC Voltage
- IP67 Waterproof And Dustproof ESC
- IP56 Dust And Moisture Resistant Motor
- Pre-Soldered 3.5mm Gold-Plated Motor Connectors
Includes:
- (1) Quicrun 12BL45 G2 Brushless ESC
- (1) 2840SL G2 Brushless Motor
- (1) User Manual
ESC
| Suggested Application | 1/12-1/14 |
|---|---|
| Motor Type | Brushless Sensorless |
| Input Voltage | 2-3S LiPo (7.4-11.1V) |
| Continuous Current | 45A |
| Burst Current | 200A |
| Dimensions (LxWxH) | 1.54x1.15x1.01in (39.2x29.2x25.6mm) |
| Weight | 2.01oz (57g) |
| BEC Voltage | 6.0/7.4V (Adjustable) |
| BEC Continuous Current | 4A |
| BEC Peak Current | - |
| Motor Connector | 3.5mm Bullet |
| Battery Connector | XT60 |
| Programmable | Yes |
Motor
| Suggested Application | 1/12-1/14 |
|---|---|
| Size | 4700kV |
| Type | Brushless Sensorless |
| Voltage | - |
| Adjustable Timing | No |
| Watts | - |
| Connector | 3.5mm Bullet |
| Dimensions | 1.10x1.60in (28x40.5mm) |
| Shaft Diameter | 1/8in (3.175mm) |
| Weight | 3.14oz (89g) |
