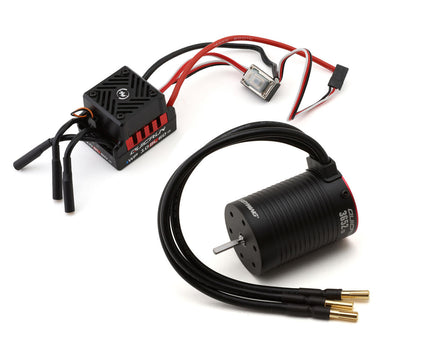

The QuicRun 10BL60 G2 Waterproof Sensored Brushless ESC and QR3652SL G2 Motor 1/10 Combo from Hobbywing is a reliable and powerful brushless system designed for 1/10 scale RC vehicles. Built for both on-road and off-road applications, this combo delivers smooth sensored control, strong acceleration, and dependable durability. The compact ESC design allows easier installation while advanced cooling and waterproof protection keep the system operating efficiently in challenging environments. Paired with the high-performance 3652SL G2 motor, this combo offers excellent efficiency, increased power output, and consistent performance for a wide range of RC applications.
About the Brushless Combo
Advanced ESC Efficiency And Cooling
The QuicRun WP 10BL60 G2 ESC incorporates intelligent freewheeling technology to improve driving efficiency while reducing operating temperatures. Its redesigned compact housing allows for easier installation and cleaner wiring in crowded chassis layouts. A mesh-style heat sink, copper thermal bars, and an integrated cooling fan work together to dissipate heat effectively during demanding runs. These cooling features help maintain stable operation and extend the lifespan of the electronics.
All-Weather Durability And Protection
With an IP67-rated waterproof and dustproof design, the ESC is built to perform in harsh environments such as mud, rain, sand, and dusty tracks. Multiple built-in protection systems—including low voltage protection, overheating protection, throttle signal loss protection, current protection, and capacitor overheating protection—help safeguard the system during operation. The ESC also supports multiple programming methods, including the SET button and optional programming boxes, allowing drivers to easily fine-tune performance settings. These features make the system both beginner-friendly and highly dependable.
High-Performance 3652SL G2 Brushless Motor
The included QuicRun 3652SL G2 motor delivers strong output power and excellent efficiency, producing approximately 10% more maximum output than comparable motors. Its advanced internal design uses 0.2mm low-loss silicon steel laminations, high-temperature enameled wire, and premium precision bearings for durability and smooth performance. The explosion-proof rotor design with reinforced aluminum end plates improves strength and balance while protecting internal components. A modular, detachable construction allows for easier maintenance and cleaning, helping extend the motor’s service life.
Features:
- QuicRun WP 10BL60 G2 Waterproof Sensored Brushless ESC
- QuicRun 3652SL G2 High-Performance Brushless Motor
- Designed For 1/10 Scale On-Road And Off-Road Vehicles
- Intelligent Freewheeling Technology For Higher Efficiency
- Compact ESC Design For Easier Installation
- Mesh Heat Sink With Copper Thermal Bars And Cooling Fan
- IP67 Waterproof And Dustproof ESC Protection
- Built-In Electronic Protection Systems
- High-Efficiency Motor With Increased Output Power
- Modular Motor Design For Easy Maintenance
Includes:
- (1) QuicRun WP 10BL60 G2 Waterproof Sensored Brushless ESC
- (1) QuicRun 3652SL G2 Brushless Motor
- (1) User Manual
ESC Specs:
| Suggested Application | 1/10 |
|---|---|
| Motor Type | Brushless Sensored/Sensorless |
| Input Voltage | 2-3S LiPo (7.4-11.1V) |
| Continuous Current | 60A |
| Burst Current | 360A |
| Dimensions (LxWxH) | 1.81x1.44x1.35in (46x36.5x34.3mm) |
| Weight | 2.92oz (82.6g) |
| BEC Voltage | 6.0V |
| BEC Continuous Current | 3A |
| BEC Peak Current | - |
| Motor Connector | 3.5mm Bullet |
| Battery Connector | Bare Wire |
| Programmable |
Yes |
Motor Specs:
| Suggested Application | 1/10 |
|---|---|
| Size | 4000kV |
| Type | Brushless Sensorless |
| Voltage | 2-3S |
| Adjustable Timing | No |
| Watts | - |
| Connector | 3.5mm Bullet |
| Dimensions | 1.42x2.05in (36x52mm) |
| Shaft Diameter | 1/8in (3.175mm) |
| Weight | 7.9oz (224g) |
