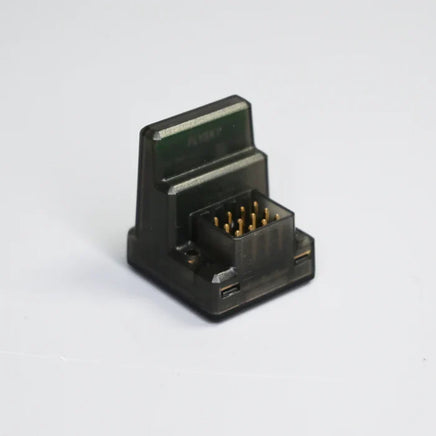

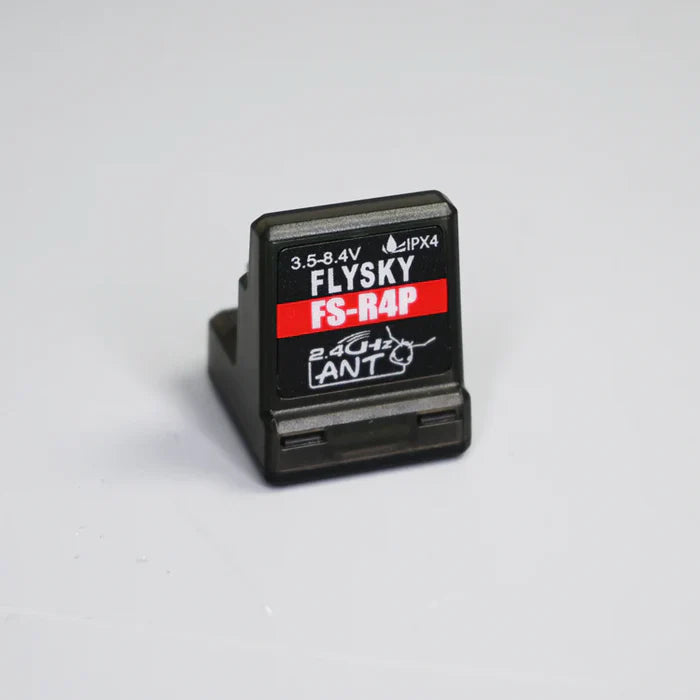

FLYSKY FS-R4P 2.4GHz 4CH Receiver PWM Output For RC Models
Feature:
The FS- R4P is a built-in antenna receiver for ANT protocol vehicles.
It has 4 pwm output channels, a built-in single antenna, IPX4 level waterproof,
and vertical pin, automatic code matching, with
Small size, light weight, easy installation, no external antenna.
Specification:
PWM channel: 4
Wireless frequency: 2.4G
Wireless protocol: ANT
Remote control distance: 100~300m (ground)
Antenna type : Built-in single antenna
Power supply : 3.5～8.4V
RSSI : Not supported
Data interface ：PWM
Temperature range : -10°C to +60°C
Humidity range: 20%-95%
Online update: Not supported
Dimension : 22.6*20.6*25.5mm
Body weight : 6g
Certification : CE, FCC
Remark:
These pictures are for reference only, Factory may change the product design without further notification.
Includes:
FLYSKY FS-R4P Receiver X 1
- Compact and Lightweight: The Audio Adapter is extremely small and lightweight, which can effectively save space and reduce the load of goods.
- Stable Performance: Mini Receivers are easy to bind and link, very fast, fast and extremely stable.
- Features and Advantages of ANT Protocol: SDR Receiver adopts ANT protocol, which is compatible with one-way and two-way real-time data transmission, intelligent RF configuration, multi-frequency hopping operation, independent identification system, high reliability system design, and low power consumption.
- Compatible Model: Radio Receiver is compatible with FS-G4P FS-G7P FS-ST8 FS-MG41 FS-MG4 transmitter.
- Warm Tips: If you encounter the problem that the Panadapter SDR receiver cannot be linked for the first time, please choose to re-link.
