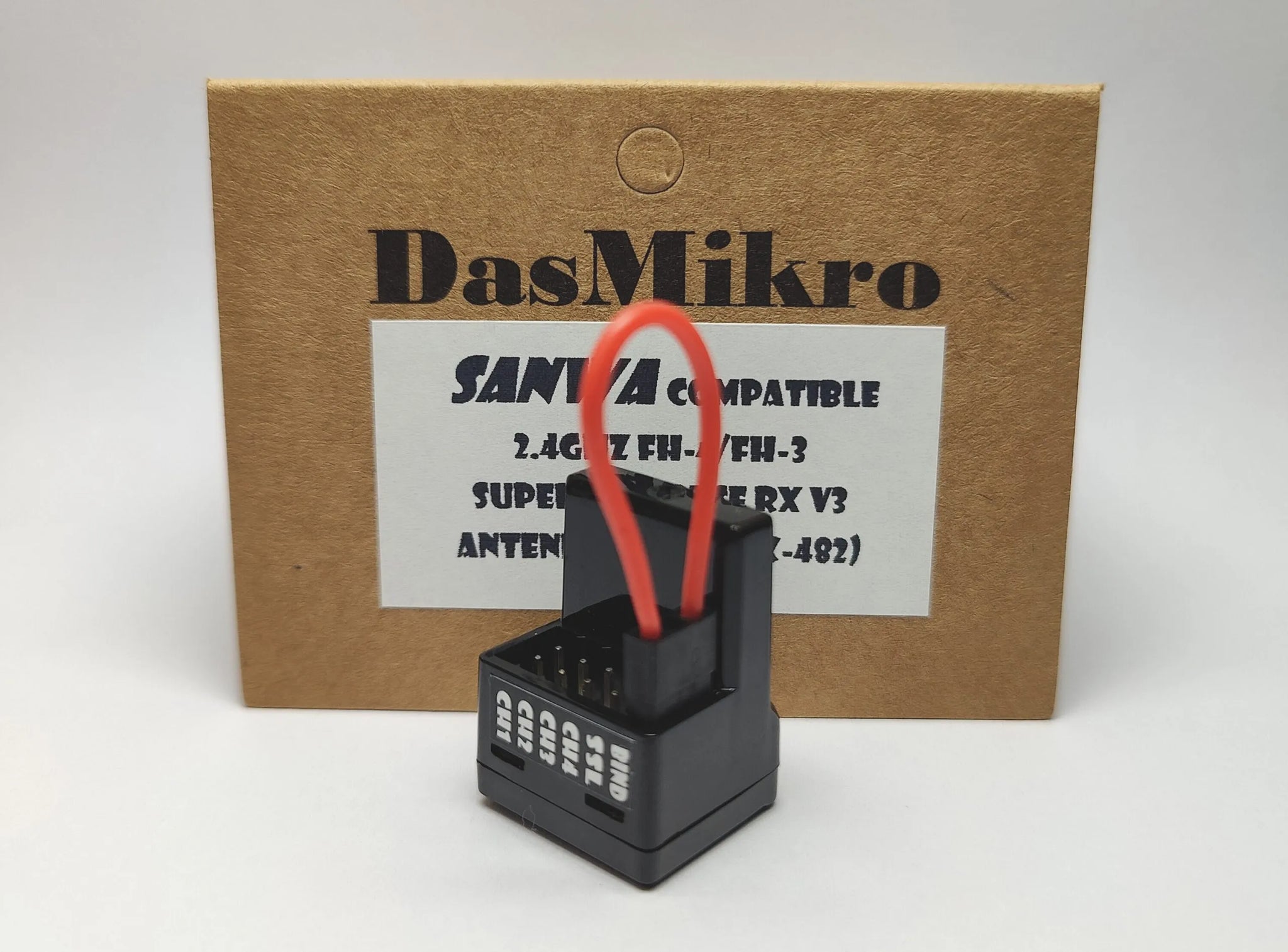

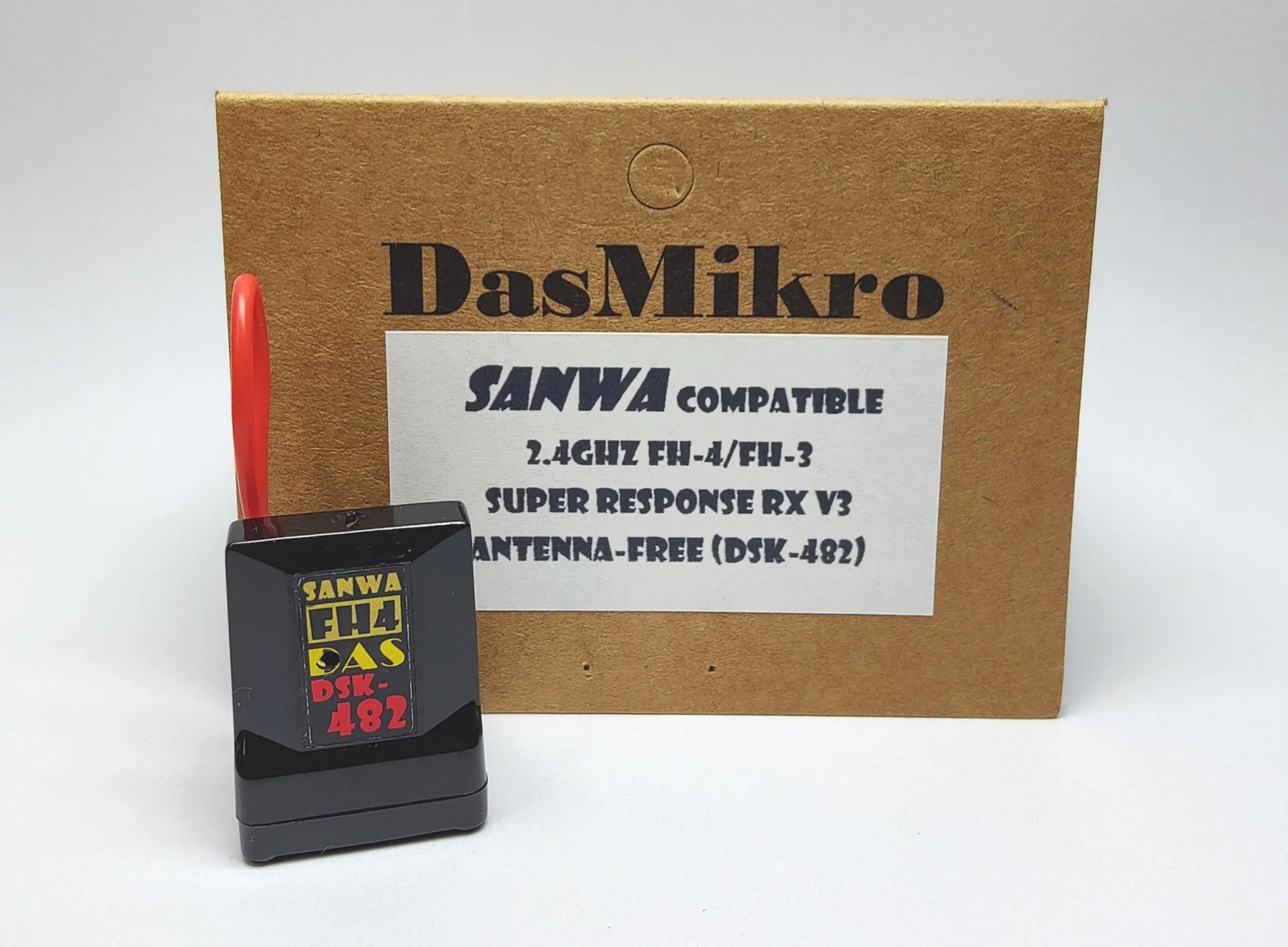

THIS IS DASMIKRO SANWA ANTENNA-FREE RECEIVER VERSION 3
COMPARED TO VERSION 2, VERSION 3 HAS BELOW CHANGES:

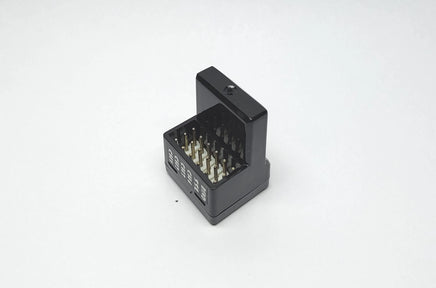

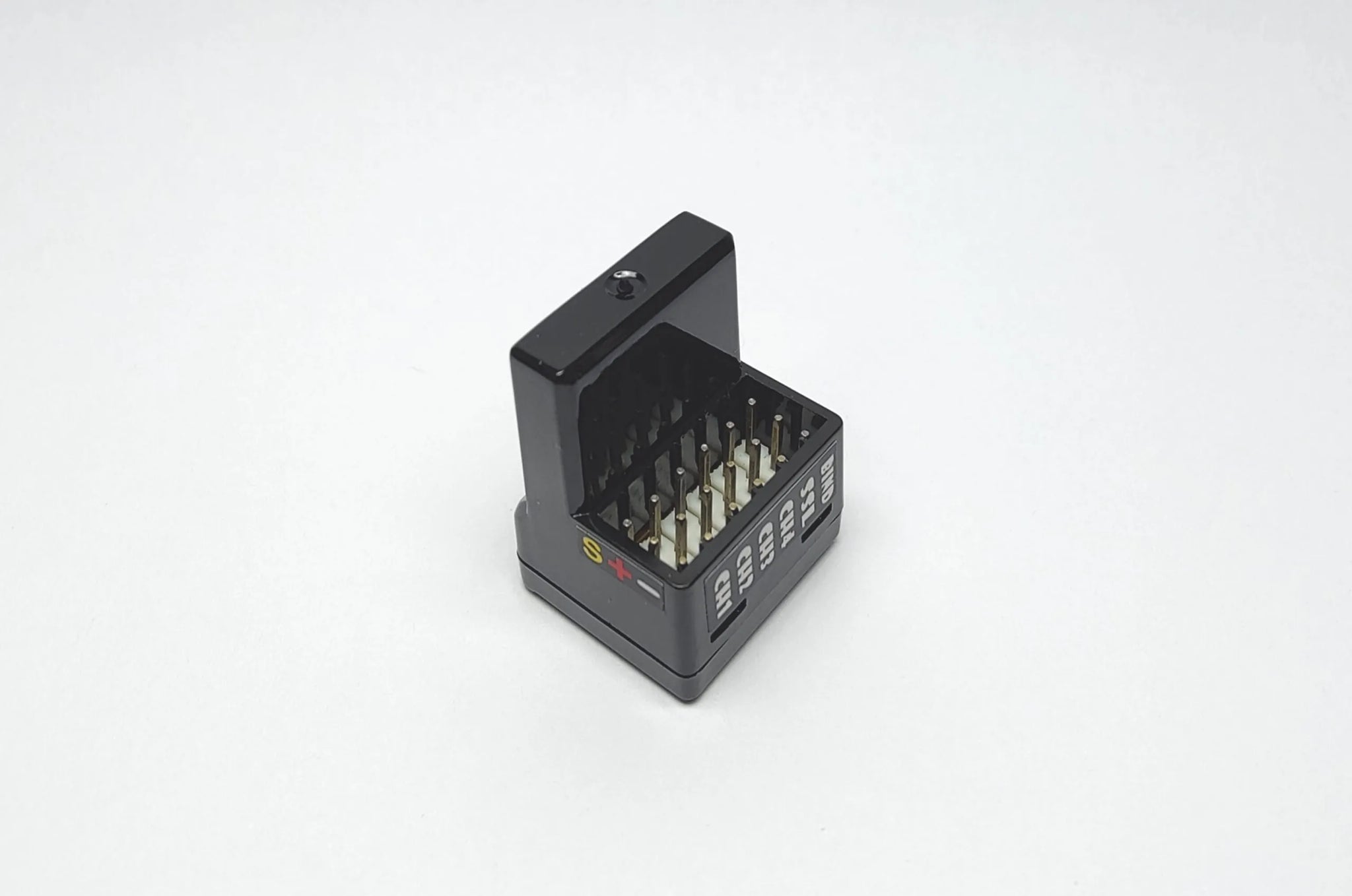

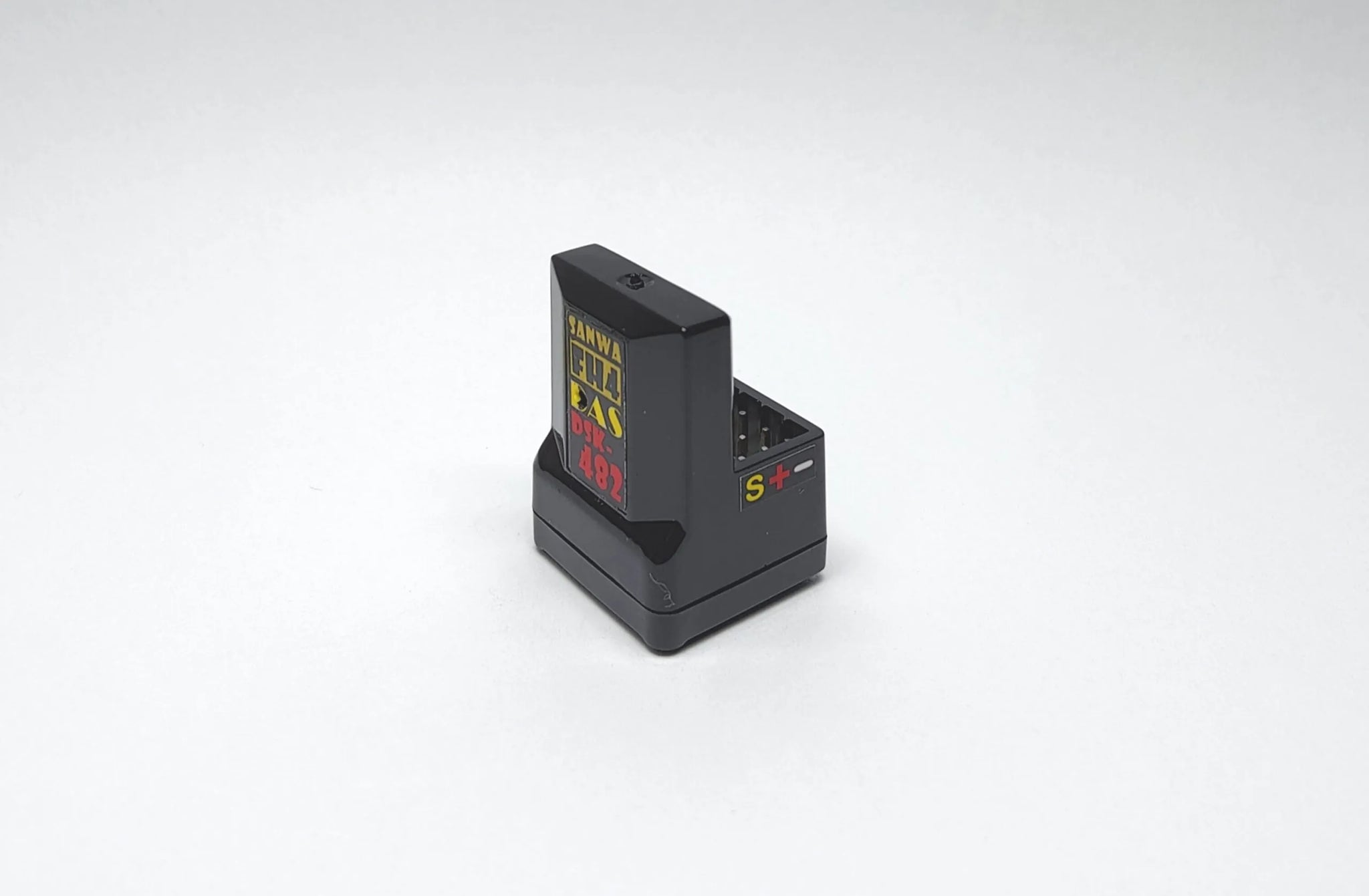

1. CHANGED TO ULTRA SMALL AND SMART LOOK RX-492 STYLE HIGH QUALITY RECEIVER BOX
2. IMPROVED GOLD-PLATED TERMINALS
3. IMPROVED PCB ANTENNA DESIGN
Description:
This receiver unit is Sanwa high speed FHSS-4 and FHSS-3 compatible
Features:
1. Sanwa 2.4GHz FH3/FH4 Selectable Via Transmitter
2. High performance CPU enhance precision control feeling
3. 4 channel support
4. Micro size (Antenna-Free: 18.2×20.2×27.4mm)
5. Added failsafe function
6. Operating Voltage 3.5V – 8.4V:
7. Weight: 5g
8. Battery Voltage Fail-Safe Limit: 3.5-5.0V (FH3) / 3.5-7.4V (FH4)
Compatible Transmitters:
Sanwa M17
Sanwa M12S
Sanwa M12
Sanwa MT44
Sanwa MT4S
Sanwa MT4
Sanwa M11X
Binding procedure：
Step1. Select FH-4 or FH-3 protocol on transmitter and switch to bind page.
Step2. Plug the ‘bind cable’ onto the receiver then power on. The receiver should enter the binding mode for 10 seconds(the led will slowly flash for 10 seconds).
Step3. Operate ‘bind’ operation on transmitter while the receiver led is slowly flashing.
Step4. If you did not make the ‘bind’ operation on transmitter in 10 seconds (receiver led slowly flashing), go back to Step 2 and do it again.
Step5. After binding please power off the receiver and transmitter, unplug the ‘bind cable’. Then power them on to confirm they are bond.
Binding procedure video reference:
https://youtu.be/Icrm-XKENnU
https://youtu.be/s63koLCPXAk
