Traxxas faithfully captures the spirit and classic look of BIGFOOT® No. 1 “The Original Monster Truck” in amazing detail with this fully licensed replica. With its new BL-2s™ brushless power system, BIGFOOT rips non-stop wheelies all the way to its 40+ mph top speed and crushes the competition underneath its towering stance. BIGFOOT is built Traxxas Tough™ with factory-installed Extreme Heavy Duty components to take even the most brutal punishment in stride.
BIGFOOT’s waterproof BL-2s brushless power system ramps up the fun with more torque, faster acceleration, and less maintenance than comparable brushed power systems. The BL-2s is a model of efficiency and refinement, offering more power than before with the safety and convenience that only Traxxas can deliver.
Extreme Heavy Duty components come factory-installed on BIGFOOT No. 1 for game-changing durability. Key drivetrain and suspension components are beefed-up with extra material for ultimate strength. From HD suspension arms to the upgraded axles, BIGFOOT sets a new standard for durability on your off-road adventures.

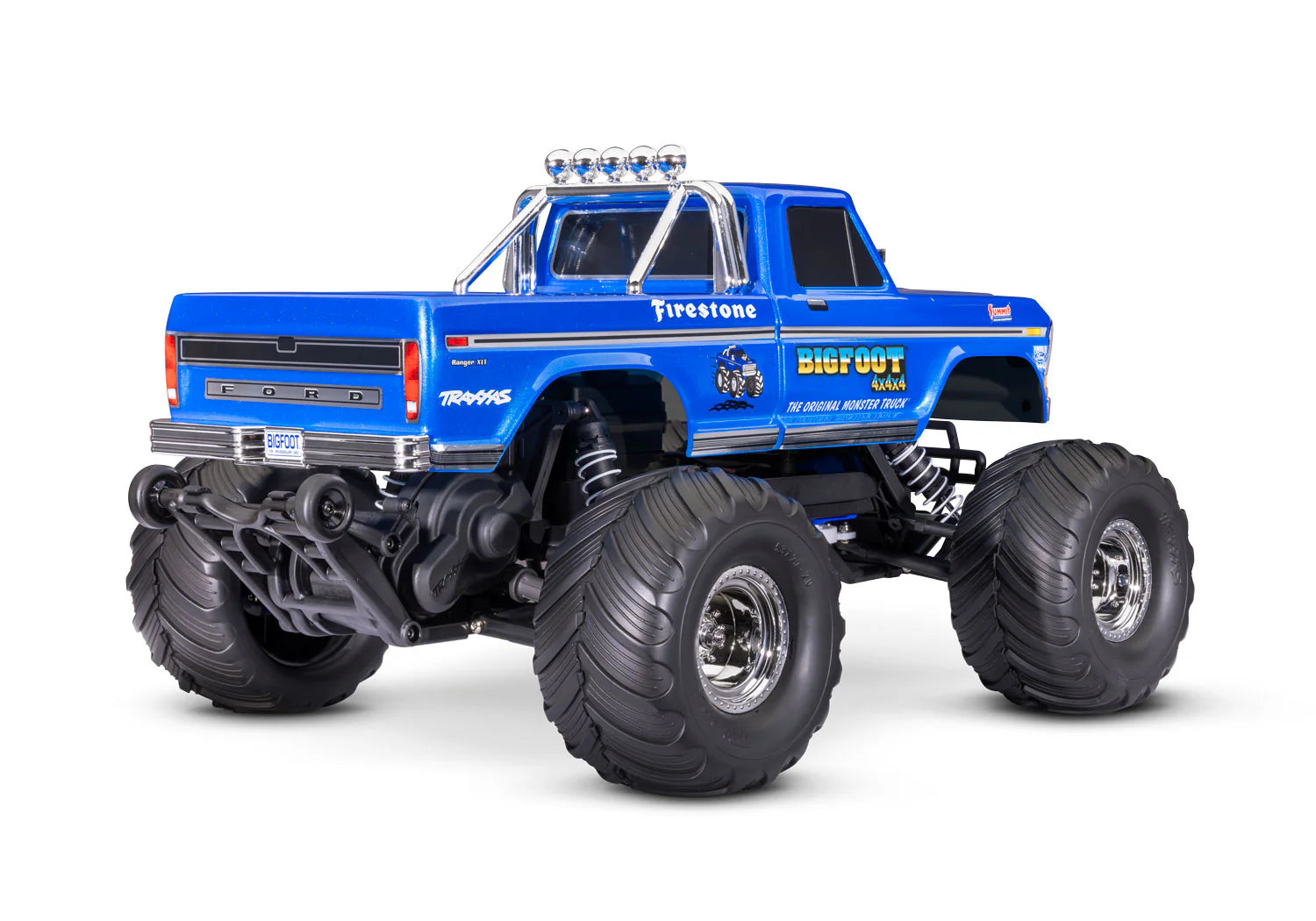

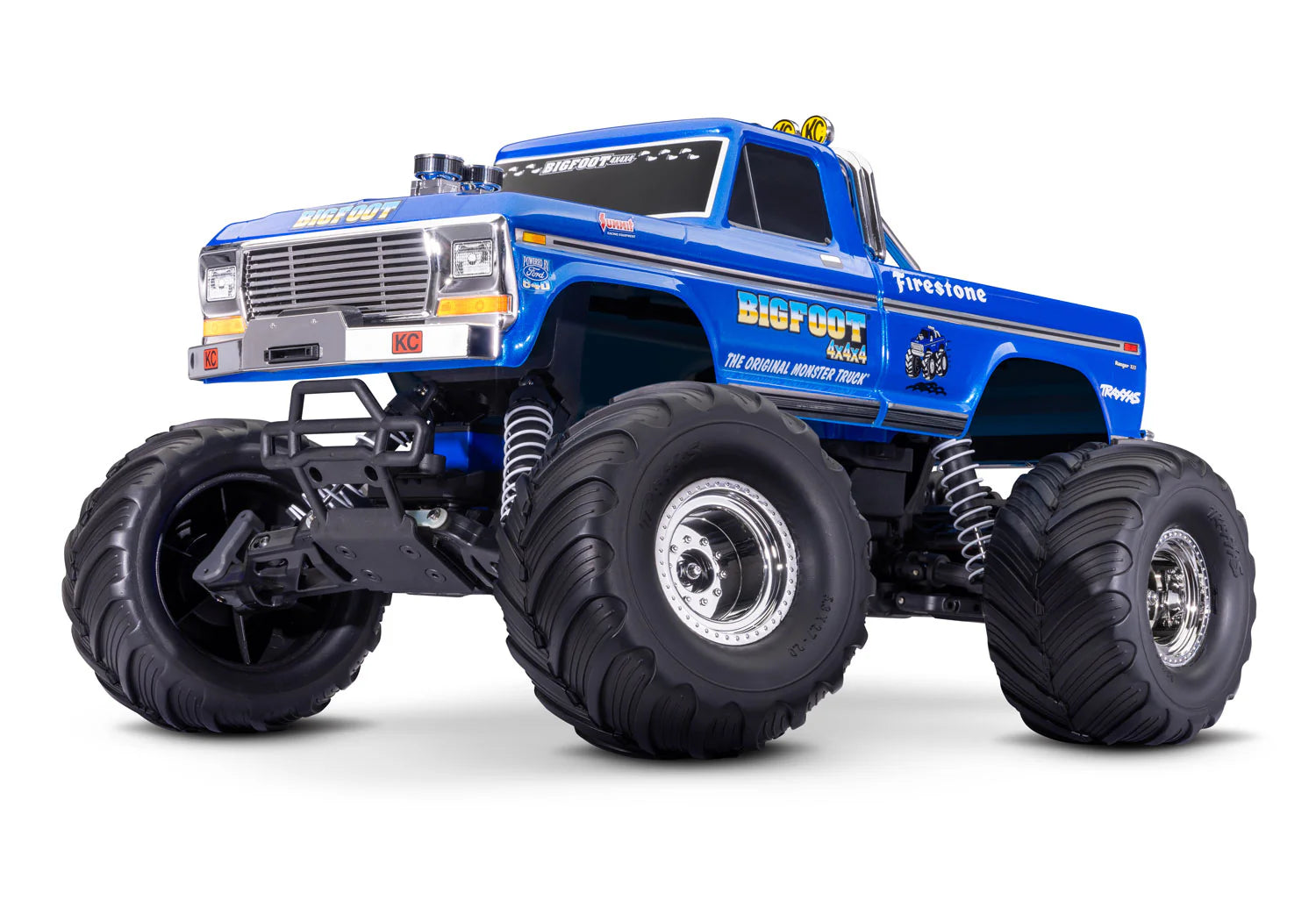

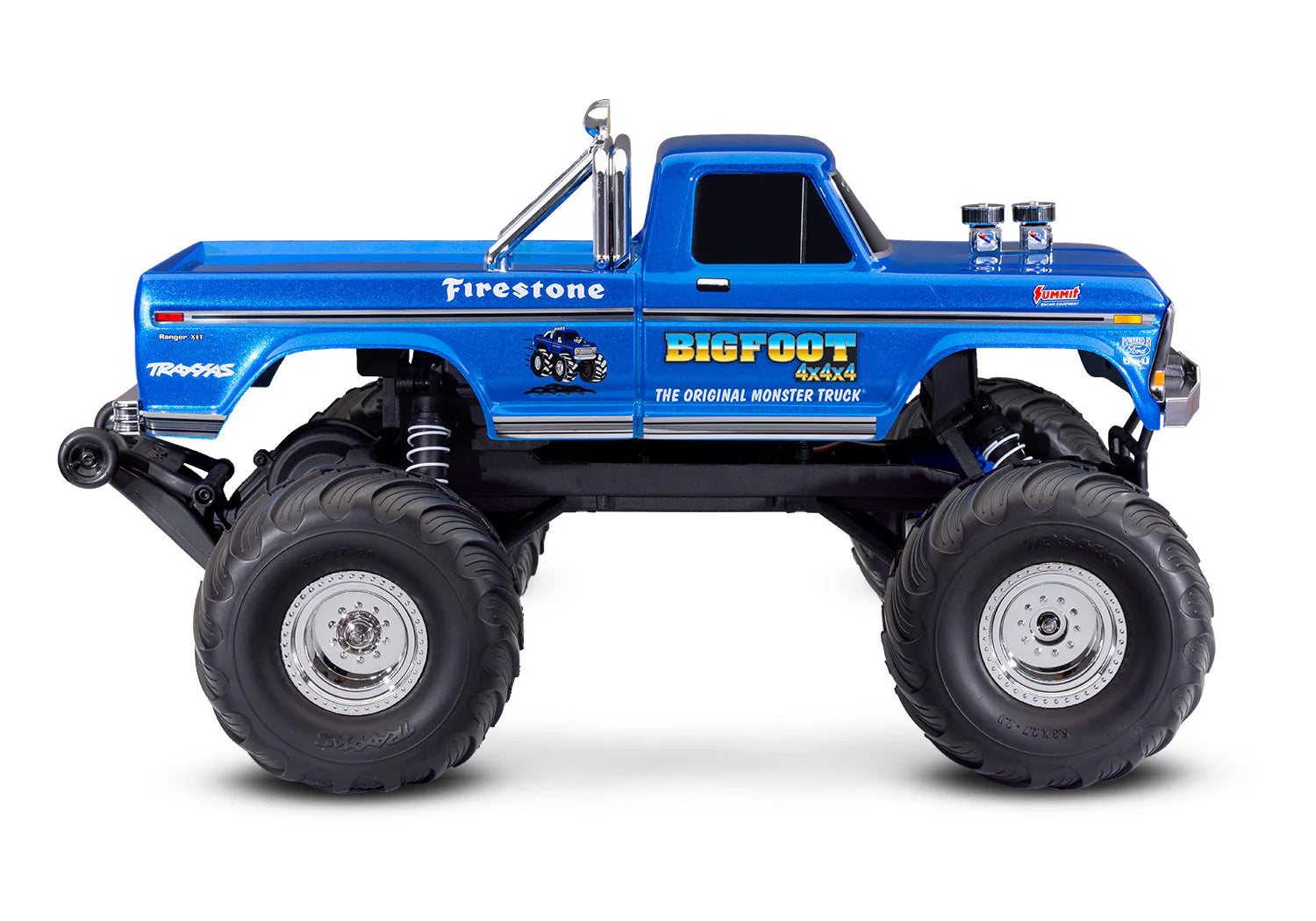

BIGFOOT No. 1 comes Ready-To-Race® with a beautifully detailed clipless replica body. Bright chrome bumpers, side trim, and roll bars stand out against the brilliant blue paint. A chrome front grille, replica KC lights, and dual-carb engine manifold complete the authentic look. Best of all, BIGFOOT’s convenient hidden latching system replaces traditional body clips with clean lines.
FEATURES:
- Licensed BIGFOOT® No. 1 Clipless Body
- Brilliant blue metallic officially licensed Ford® F-250® Ranger XLT body
- Chrome front bumper with replica winch
- Chrome grille
- Replica high-rise dual-carb intake manifold
- Chrome roll bar with replica KC lights
- Holds tight for intense action
- Quick and easy removal
- 4-position adjustable wheelie bar
- Extreme Heavy Duty Upgrade Components
- Strengthened C-hubs, axle carriers, and steering blocks
- Extreme heavy duty driveshafts
- BL-2s™ Waterproof Electronic Speed Control
- Heat sink accepts accessory cooling fan
- Three Programmable Drive Profiles
- Sport Mode - Forward / Brake / Reverse
- Race Mode - Forward / Brake
- Training Mode™ - 50% Forward / Brake / 50% Reverse (patented)
- Traxxas EZ-Set® one-button setup
- Built-in two-stage low-voltage detection for LiPo batteries
- NiMH battery packs: 6-7 cells (7.2 to 8.4 volts)
- LiPo battery packs: 2 cells (7.4 volts)
- 3300 kV Brushless Motor
- Integrated cooling fan
- Low-maintenance design
- Efficient ball bearings
- 3300 kV
- TQ™ 2.4 GHz Transmitter
- Full-size 2-channel transmitter
- All-day comfort with precise long-range control

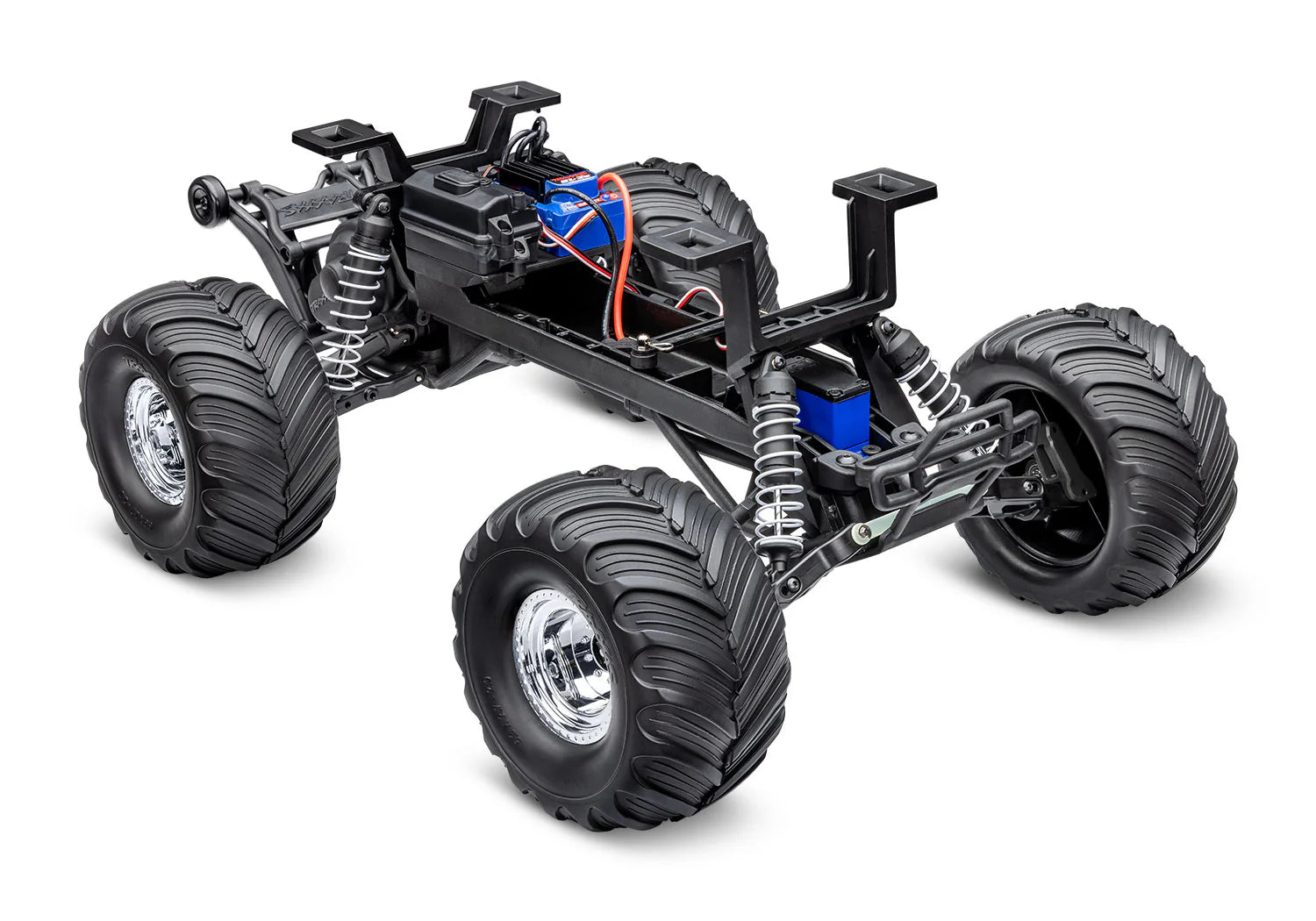

- Tough Fiber-Composite Monocoque Chassis
- Tall 4″ center ground clearance to drive over obstacles
- Heavy duty servo saver
- Easy Access Battery Compartment
- Accepts 6- and 7-cell flat packs and 7-cell hump packs
- Accepts many 2s LiPo battery configurations
- Suspension
- Heavy-duty suspension arms
- One-piece camber links
- Oil-filled Ultra Shocks™
- White powder-coated springs
- Steering
- Chassis-mounted 2056 servo
- Heavy duty servo saver
- Transmission
- Velineon-ready Magnum 272™ metal-gear transmission
- Planetary gear differential with steel ring gear
- Sealed gearbox protects the transmission
- External gear cover with easy clutch access
- Drivetrain
- Extreme heavy-duty driveshafts
- Torque Control™ slipper clutch
- Wheels and Tires
- Pre-glued high profile Terra Groove shaved monster truck tires
- 2.2″ chrome deep dish beadlock-style wheels
- Sealed Ball Bearings
- Hex hardware with Rust-Resistant Black Oxide Coating
SPECIFICATIONS:
- Length: 18.1 inches (459 mm)
- Front Track: 12.75 inches (324 mm)
- Rear Track: 12.75 inches (324 mm)
- Weight (no battery): 4.08 pounds (1.85 kg)
- Height (overall): 9.5 inches (241 mm)
- Wheelbase: 10.6 inches (270 mm)
- Shock Length (front): 3.45 inches (88 mm) - Long
- Shock Length (rear): 3.98 inches (101 mm) - XX-Long
- Tires: Terra Groove 2.2″ all terrain
- Wheels (front/rear): 2.2″ chrome deep dish
- Wheel Diameter: 2.2 inches (71 mm)
- Overall Drive Ratio: 12.34:1
- Speed Control: BL-2s™ electronic speed control
- Motor (electric): BL-2s™ 3300 kV sensorless brushless
- Differential Type: Planetary
- Gear Pitch: 48
- Chassis Structure/Material: Composite modified tub
- Drive System: 2WD
- Steering: Bellcrank
- Radio System: TQ™ 2.4 GHz (2-channel)
- Servo: Waterproof 2056 servo (80 oz-in torque)
- Skill Level: 1
- Battery Compartment (L/W/H): 165 mm (6.49″) x 48 mm (1.89″) x 28 mm (1.10″)
- Required Batteries: 4 “AA” (transmitter), Vehicle
- MOTOR SPECS:
- Type: BL-2s 3300 kV sensorless brushless motor
- Weight: 7.51 ounces (213 g)
- Length: 3.15 inches (80 mm)
- Diameter: 1.42 inches (36 mm)
- Connector Type: Traxxas Quick Connect Motor Plug
- ESC SPECS:
- Input Voltage (cells): 6-7 Cells NiMH / 2s LiPo
- Case Size: 1.53″ (39 mm) x 2.31″ (59 mm) x 1.21″ (31 mm)
- Weight: 3.07 ounces (87 g)
- BEC Voltage: 6.0 volts
- Reverse Delay: Yes, with lockout
- Thermal Protection: Two-stage thermal shutdown
- Ports: Auxiliary fan
INCLUDES:
- 2WD BIGFOOT monster truck with BL-2s ESC and 3300 kV motor
- Quick Start Guide
- TQ™ 2.4 GHz radio system
- High quality maintenance tools
Needed to complete:
- Batteries: BIGFOOT BL-2s requires a single NiMH or LiPo battery. See full list of batteries
- Charger: Traxxas EZ-Peak® charger (2970) is recommended for easy and fast charging performance
- AA Alkaline Batteries: Four AA alkaline batteries for the transmitter
