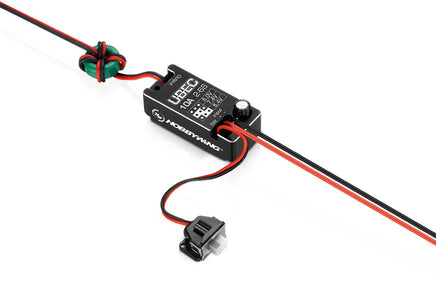

The UBEC uses an efficient DC-DC regulator chip with a conversion efficiency of more than 90%. The all-metal housing is designed to help dissipate heat and reduce electromagnetic interference. The UBEC output voltage is adjustable in three stages (6.0/7.4/8.4 V) with a continuous current of 10A and a maximum of 15A. The voltage specifications allow the use of a wide range of servos and electrical equipment such as lights, winches, wipers and etc. At the same time, the UBEC is equipped with overcurrent protection, output short-circuits protection, overheat protection, and IP67 waterproof dust design, and can be widely used on crawlers, trucks, and other electric models as well.
- Input Voltage: 6V－25.2V (2-6S LiPo)
- The output voltage is programmable by dip switches.
4 Options: 5.0V/6.0V/7.4V/8.4V - Output Amperage: Continuous Current: 10A
- Dimension: 43.1 x 32.3 x 12.5mm (L x W x H)
- Weight: 36g (1.27oz)
- It adopted the advanced DC-DC regulator chip with conversion efficiency exceeds 90%;
- 4 options for the output voltage, applicable for all kinds of receivers/gyros/servos, etc.
- It owns BEC shoot-through protection, which prevents the input voltage from directly flowing to the output end and causing damages to receivers, servos, and other electronic devices;
- It featured other protections like over-current protection, short-circuit protection (at the output end) and thermal protection make the use more safe and reliable;
- Two cables are connected in parallel at the output end of the UBEC, allow a larger current to flow into the receiver.
- It has one status LED, which lights up when the output voltage is within the normal range;
- The external switch can turn on/off the UBEC easily;
- Exquisite aluminum case is helpful for heat dissipation & EMI (Electromagnetic Interference) reduction.
