- Works with 4 pole brushless motor, a full sensor mode when paired with HOBBYWING motor
- 10 different programmable profiles available through LCD program box or WiFi Express Module
- Fully adjustable brake and throttle functions
- LiPo Low Voltage Cut off
- ESC thermal overheat protection
- Motor thermal overheat protection
- Remote On/Off feature
- "1-degree" Precision throttle and brake control
- Coast Control (patent pending*)
- Drive Frequency Control
- Brake Frequency Control
- Boost Timing control and options for Modified racing
- Turbo Timing control and option for Modified racing
- Ultra-Low-resistance circuitry
- ROAR-approved software including Zero-timing
- Smallest footprint and height possible with current technology to fit within even more tighter space of a vehicle.
- 12-gauge high-quality power wires
- Powerful external capacitor board
- HOBBYWING Over-The-Air Firmware updateable through WiFi Express module (purchased separately)
- The most advanced brushless ESC has proven by World Champ.competitions worldwide.
Specifications

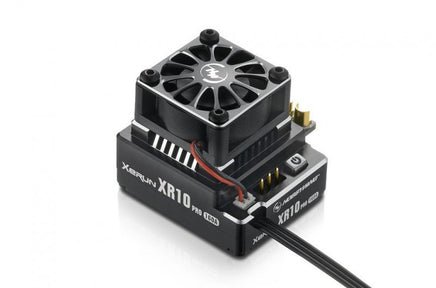

| ID | XR10 PRO ESC - Legacy |
| p/n | 30112600 |
| Type | Scale: 1/10th Brushless Sensored ESC |
| Cont./Peak Current | 160A/1200A |
| Power input | 2-3S LiPo/4-9 Cell NiMH |
| BEC output | 6V/7.4V Switchable, Continuous Current of 4A (Switch-mode) |
| Wire input | Black-12AWG-200mm*2 |
| Wire output | Black-12AWG-200mm*3 |
| Size | 37.5x30.9x31.6mm (w/Fan & Fan Shroud) |
| Weight | 95g (w/ Wires) |
| Cooling Fan Voltage Range |
25.0x25.0x10.0mm Powered by the stable BEC voltage of 6V/7.2V |
