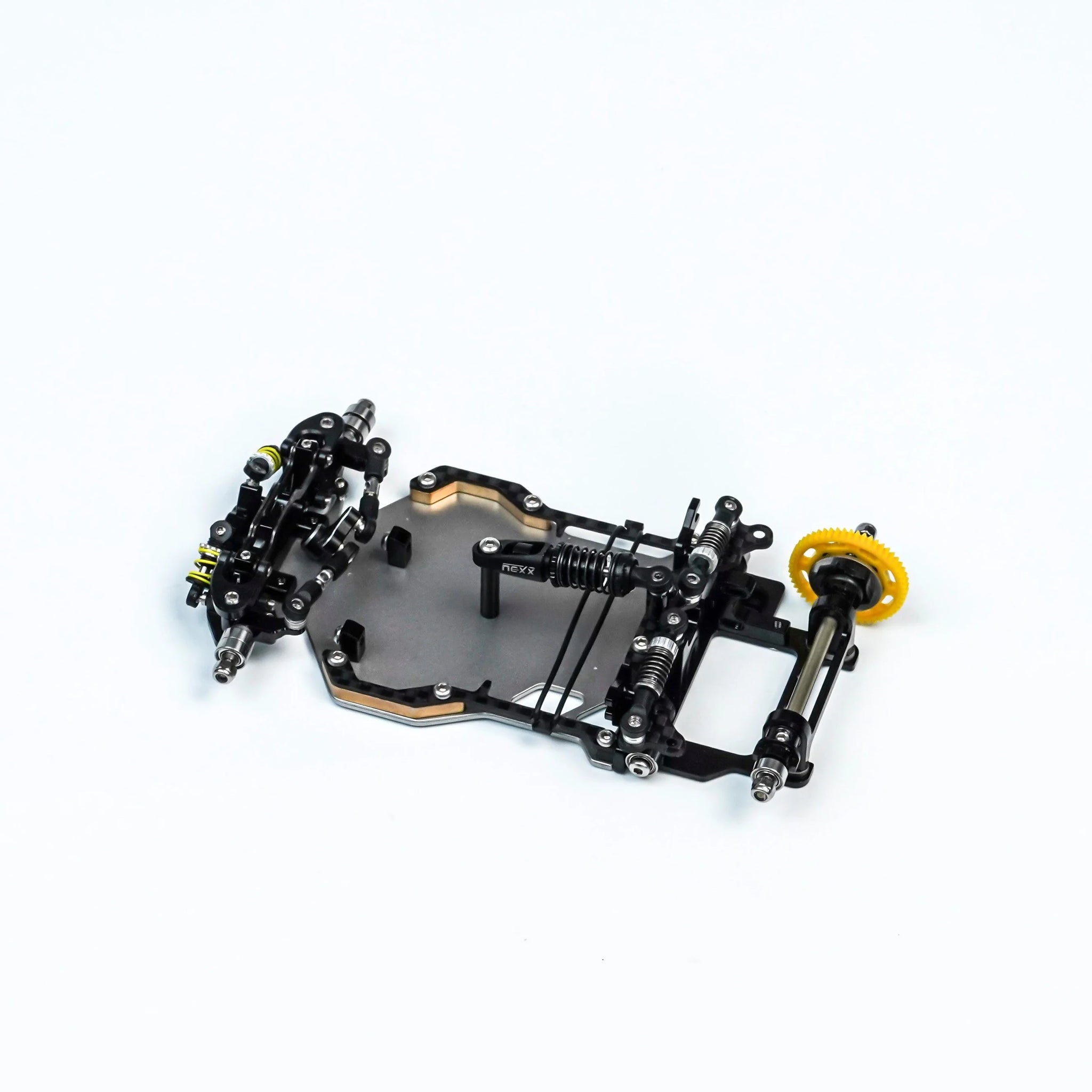

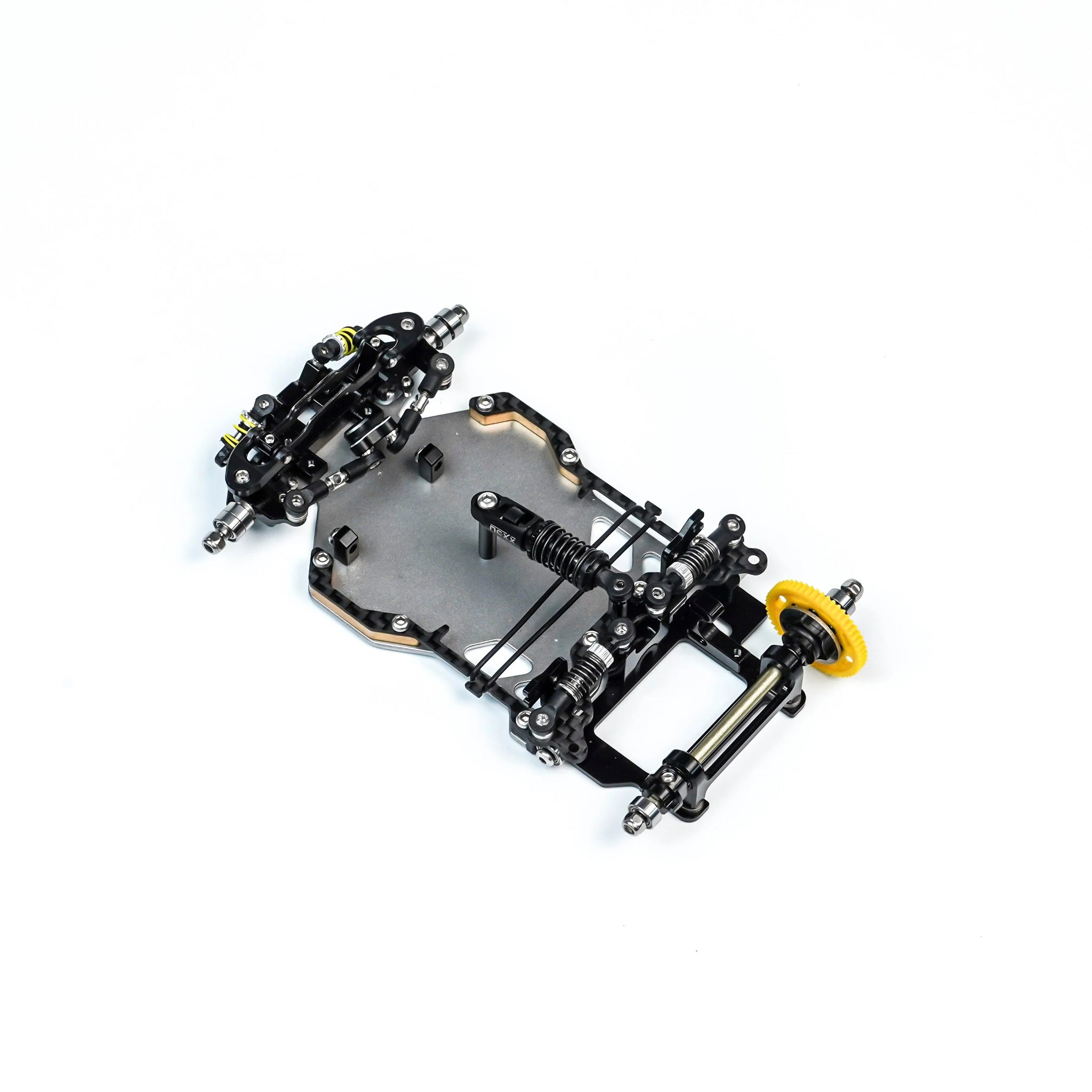

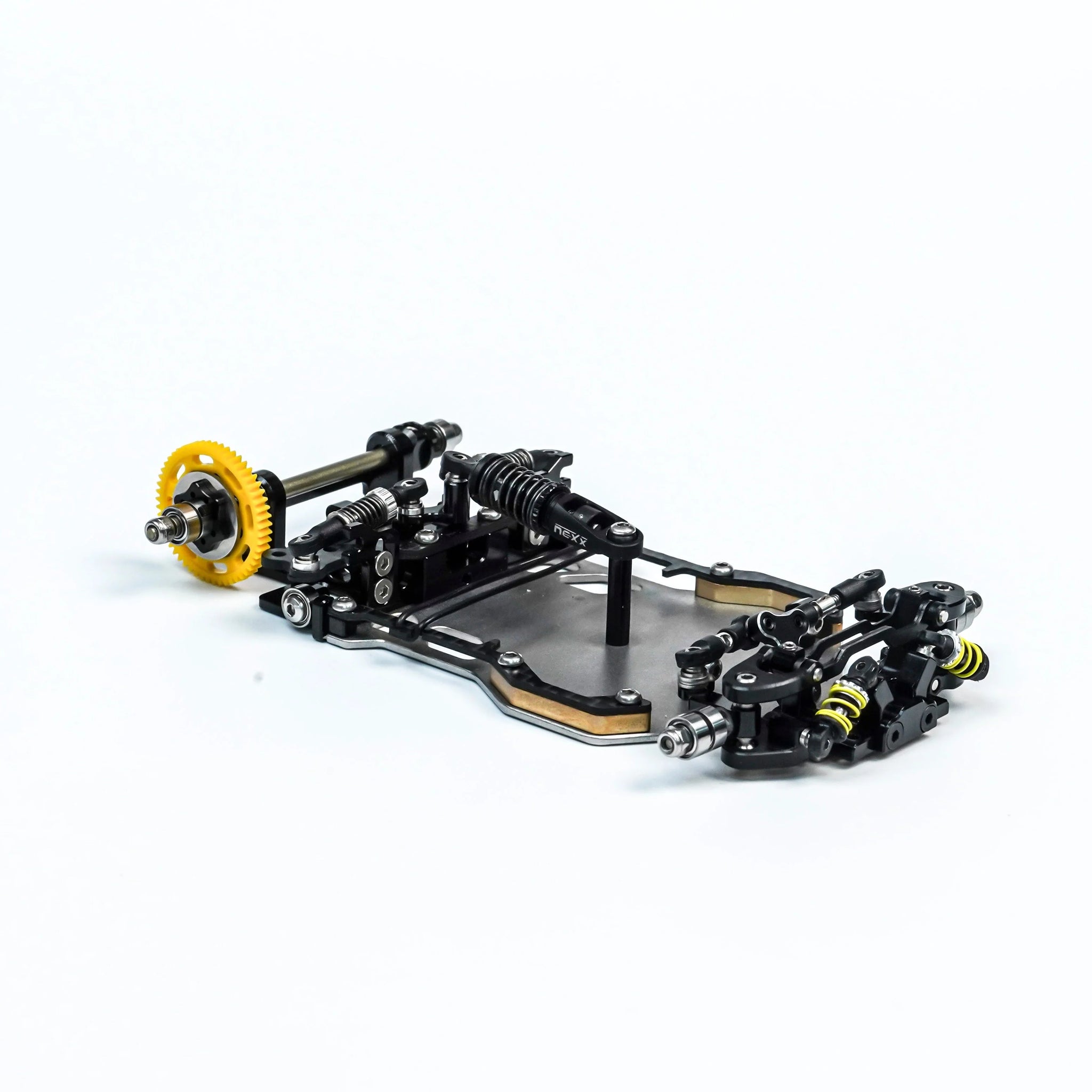

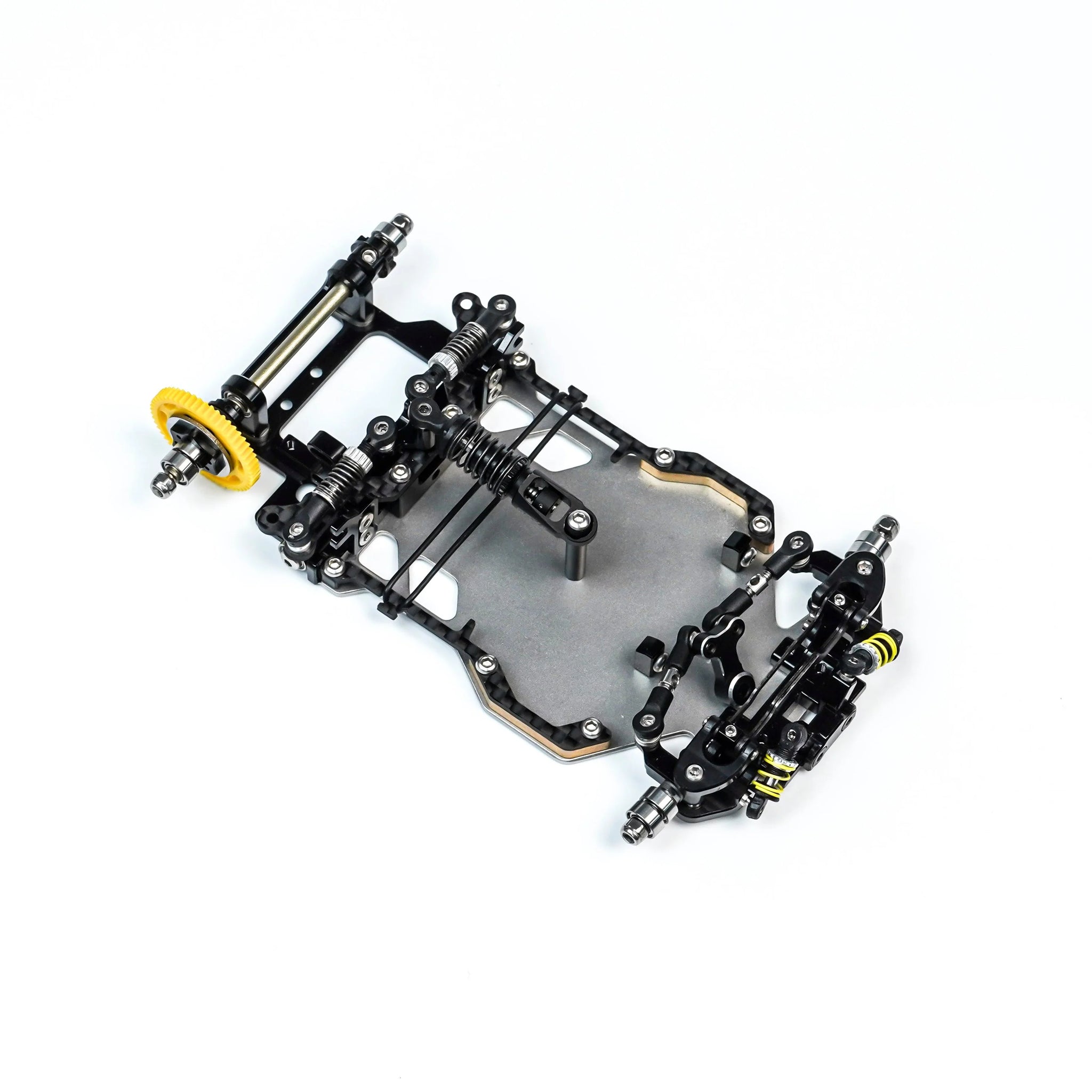

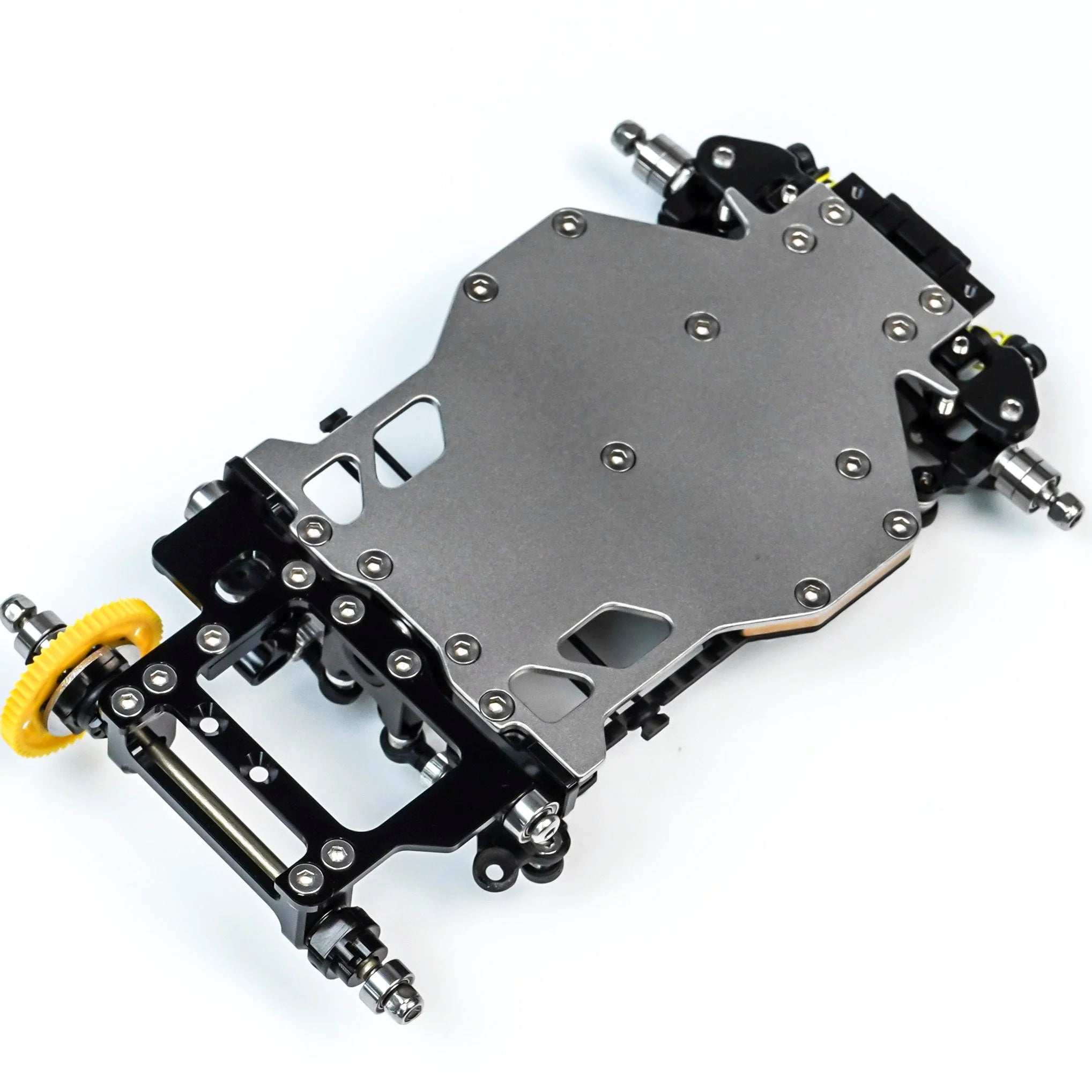

The 98mm High-Performance 1/28 Scale Racing Chassis is a cutting-edge platform engineered for agility, stability, and precision. Every detail is designed to maximize performance on modern high-grip tracks while maintaining balance and responsiveness.
Key Features
-
Optimized Wheelbase (98mm): Provides an ideal balance between agility and high-speed stability.
-
Sidelinkless Design: Ensures smooth, unrestricted motion for consistent rolling dynamics.
-
Ground Effect Compatibility: Designed to harness aerodynamic downforce for improved grip and cornering stability.
-
Shock Towerless Configuration: A groundbreaking design that eliminates the traditional shock tower, dramatically lowering the center of gravity (CG) for enhanced handling.
-
Double Front Suspension Arms: Dual-arm system enhances steering response and reduces chassis vibration.
-
Short Front Arms: Shorter geometry improves feedback and cornering precision.
-
Front Shock Angle (35°): Optimized damper angle increases efficiency and improves front-end stability.
-
3mm Front Wheel Axle: Provides exceptional durability and precise wheel alignment.
-
Direct Drive Servo: Offers instantaneous steering response with minimal mechanical play.
-
Servo Compatibility: Supports all 1/28 scale thin servos such as OMG CF20, AGFRC A06, and G-Force models.
Suspension & Handling
-
Tri-Shock + Side Damper Setup: A proven configuration combining vertical and lateral damping for smoother transitions and improved balance.
-
Adjustable Caster: Allows fine-tuning of steering characteristics for different track layouts.
-
Quick-Change Ride Height: Simple adjustments for adapting to various surface conditions.
-
Optional Tuning Components:
-
Camber turnbuckles for precise wheel angle control.
-
Anti-roll bar for enhanced cornering stability.
-
Ground effect aero parts for maximum aerodynamic efficiency.
-
Chassis & Construction
-
Full Aluminum Construction: Provides superior rigidity and durability while maintaining lightweight performance.
-
Adjustable Motor Mount: Enables fine motor positioning for perfect gear mesh and weight balance.
-
Body Mount Options:
-
Adjustable side clip mount for hard bodies.
-
Lexan mount system for lightweight racing shells.
-
-
Chassis Material Options:
-
Standard 1.5mm aluminum chassis for balanced performance.
-
Optional brass chassis for added traction and stability.
-
Optional carbon-fiber chassis for ultra-lightweight performance.
-
