Following up on the success of its larger predecessor (the HackFab Starfighter Remix for the Losi LMT), this new kit brings a lot of the same flair to the Mini LMT.
Everyone loves the Losi Mini LMT. It is a great solid axle monster truck. We noticed however that it could use some love in the handling department. We love how link-mounted-shock kits drive on the bigger LMT, so we set out to create something similar for the Mini LMT.

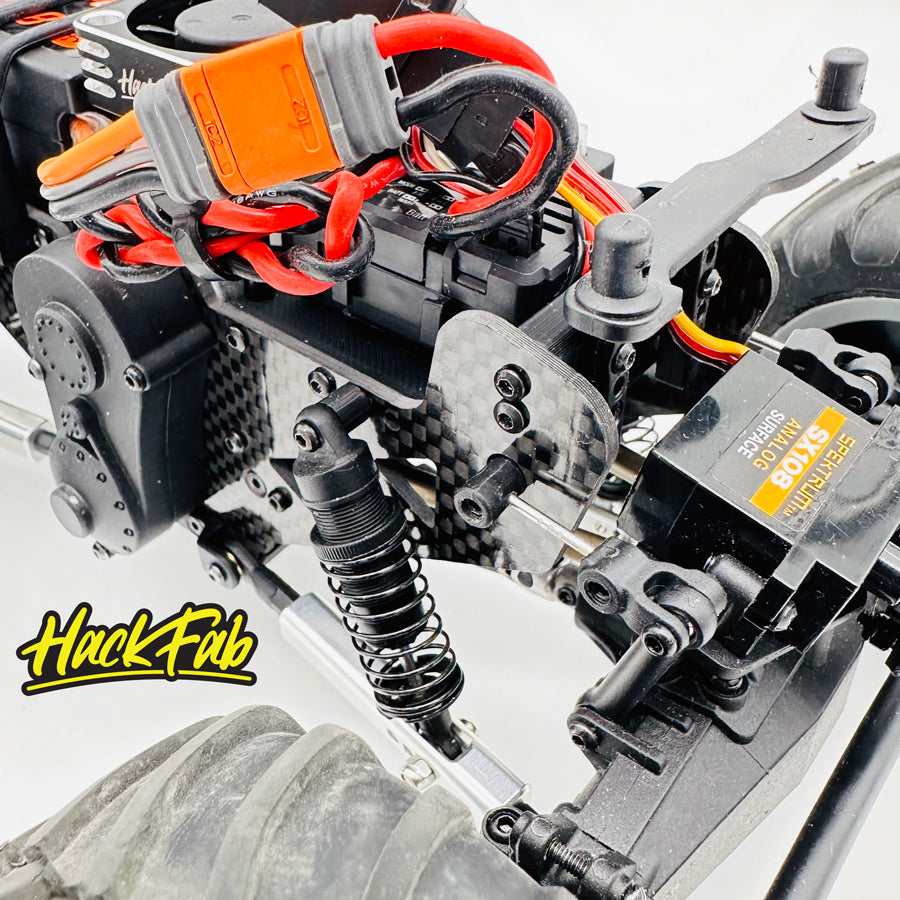

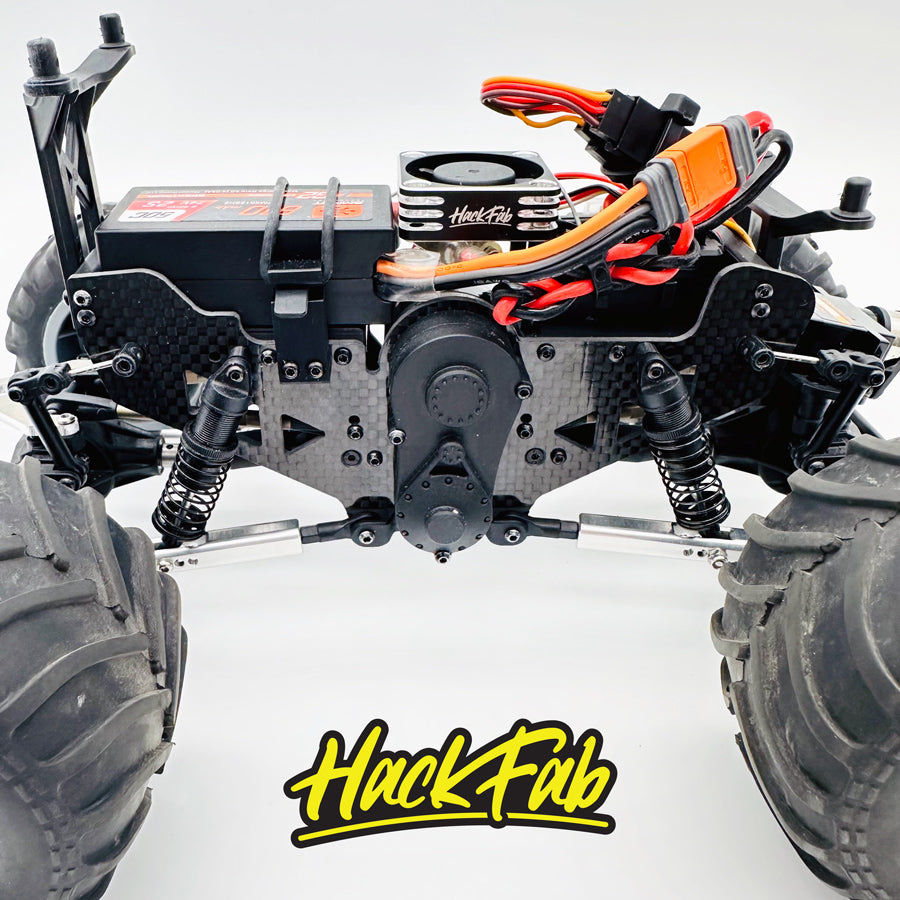

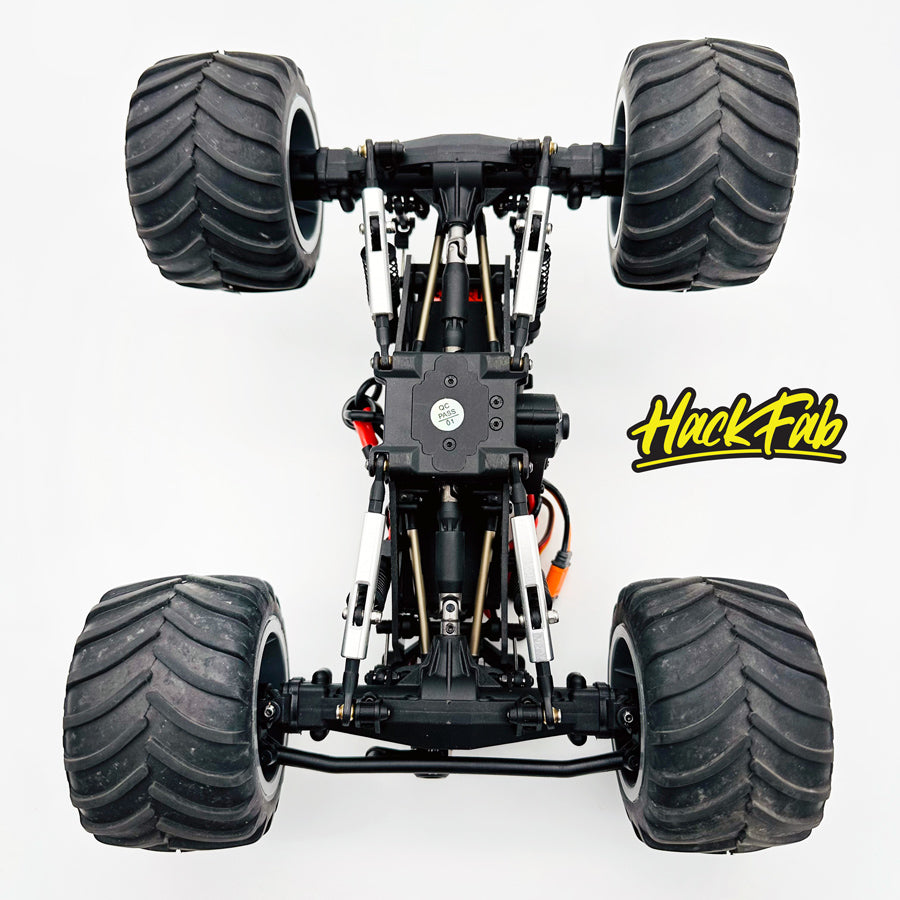

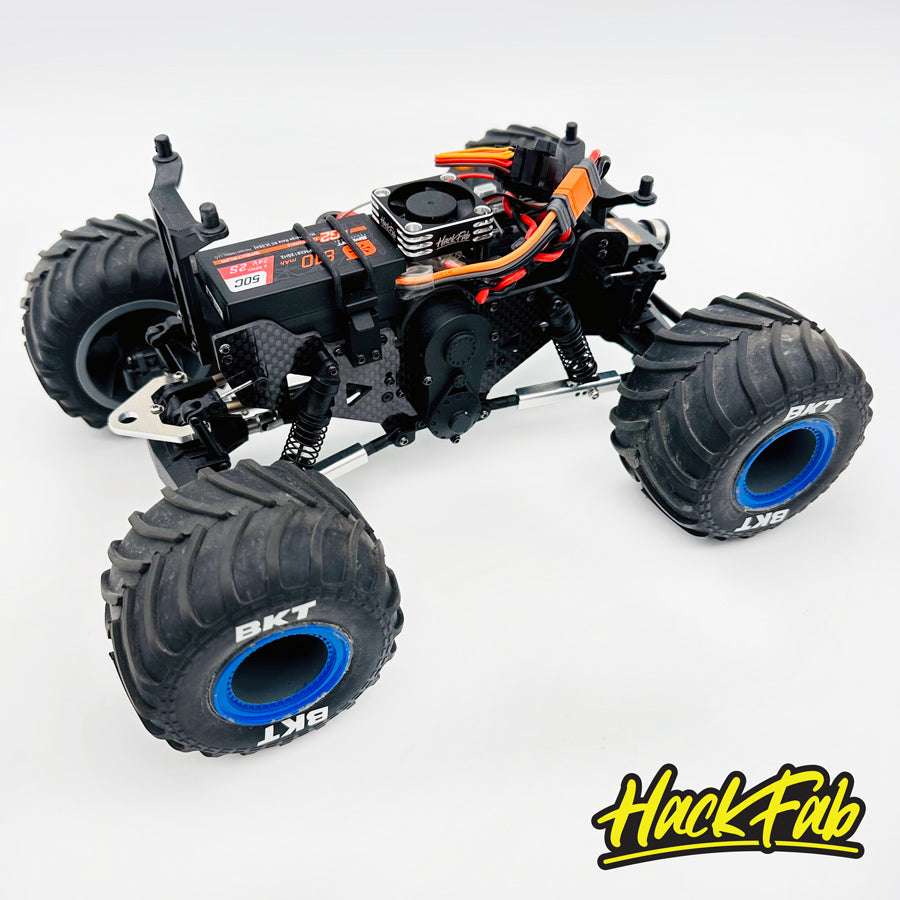

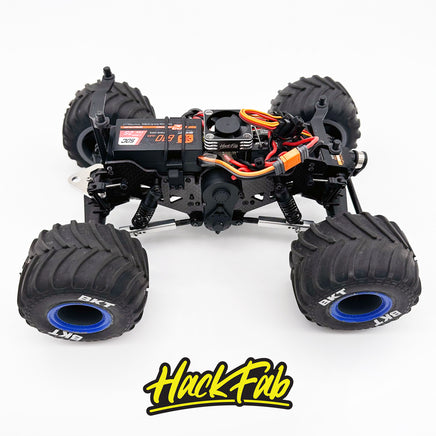

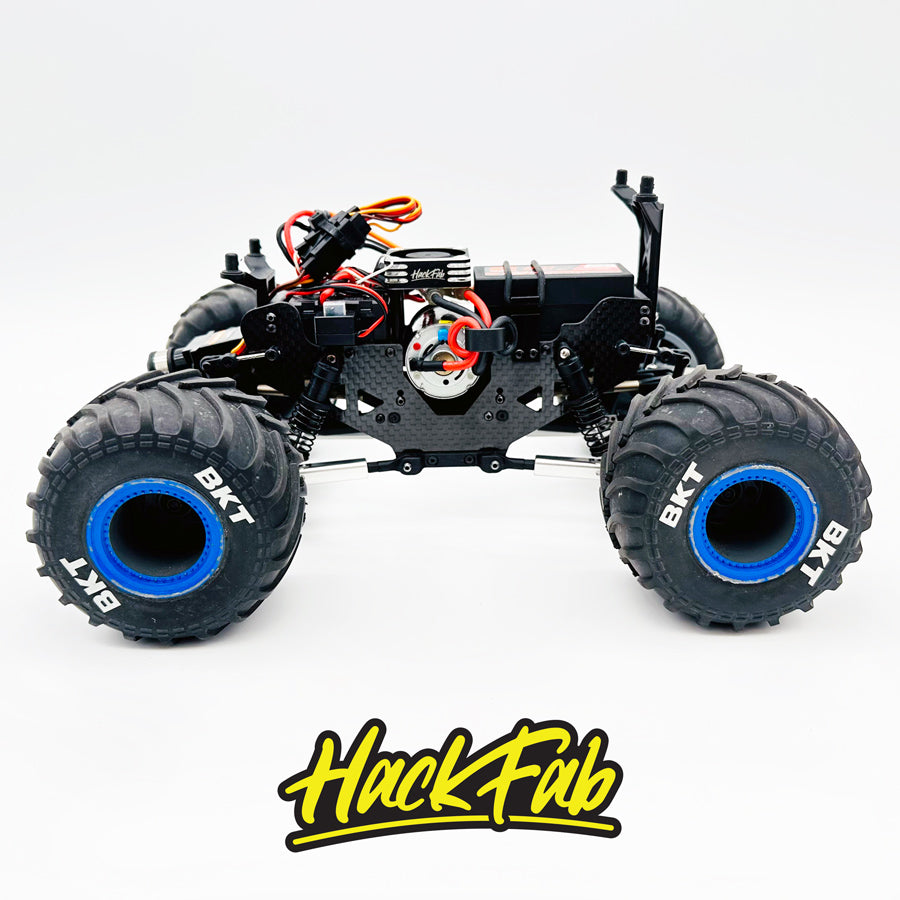

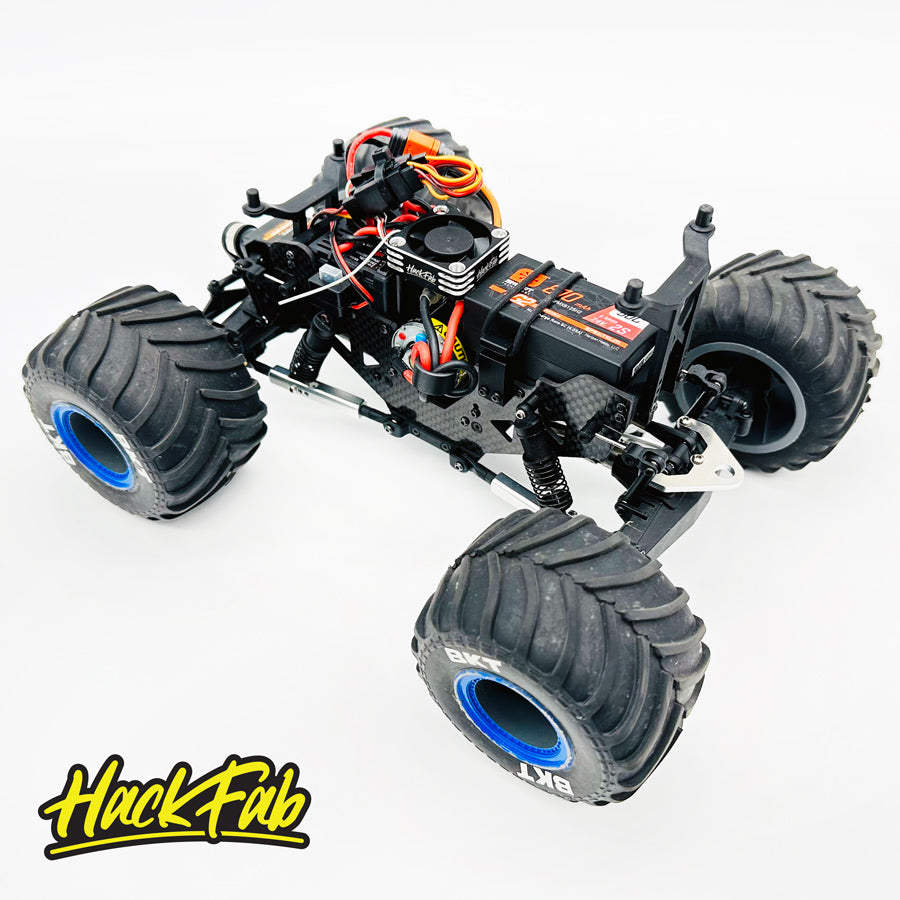

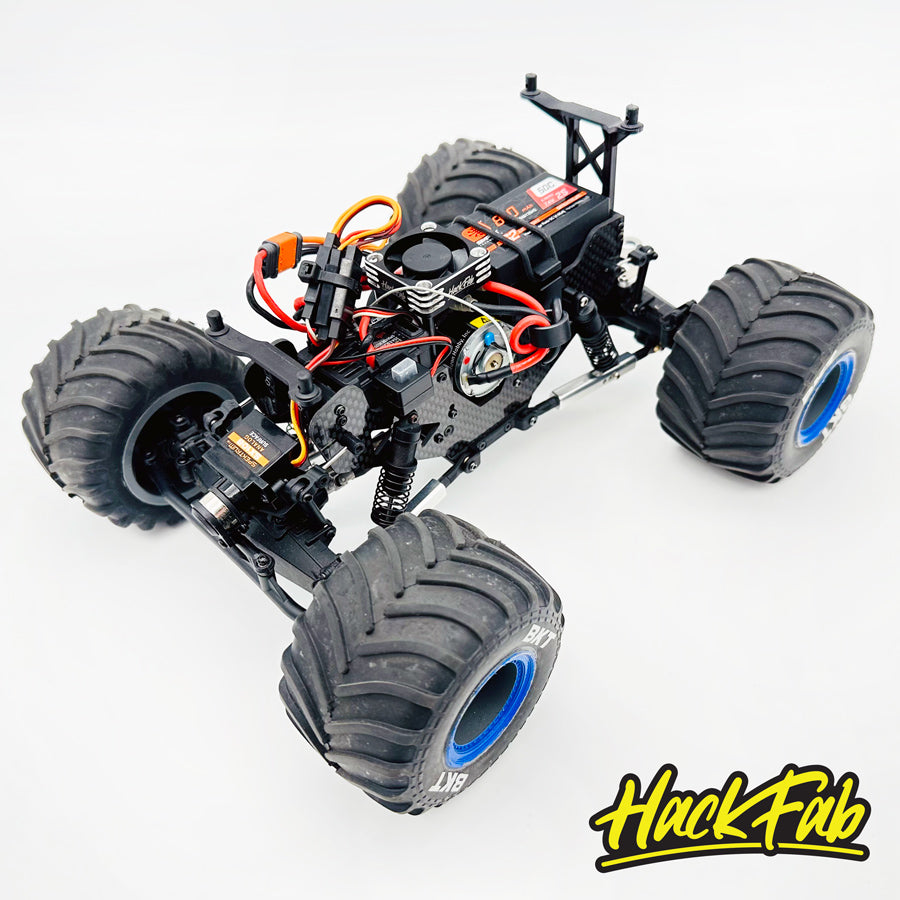

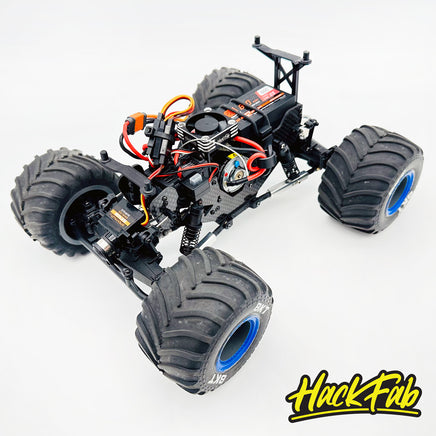

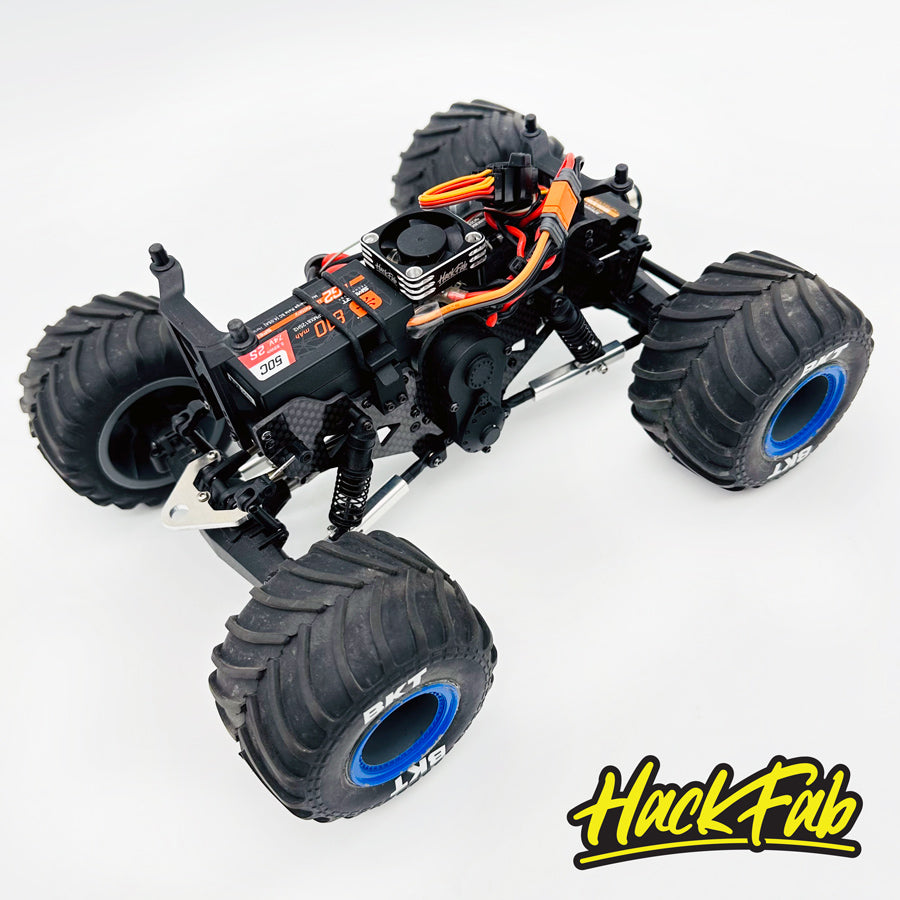

The HackFab Mini Starfighter LCG Race chassis kit lowers the center of gravity tremendously. It offers LCG placement of the ESC and battery. It removes the entire roll cage system. It utilizes much shorter shocks (not included) that mount lower on the chassis and to the lower links. It fixes some lower link geometry issues by running the lower links on the outside of the lower link mounts on the axle (longer screws and spacers included). The kit totally changes the attitude of the truck and its driving style, making it more suitable for racing.
Some basic notes:
You will need to provide your own 50mm length shocks. The kit was designed around the Losi Mini-T 2.0 front shocks (LOS314004). Similar shocks may also work, but have not been tested. We include standoffs intended to work with the Losi shocks.

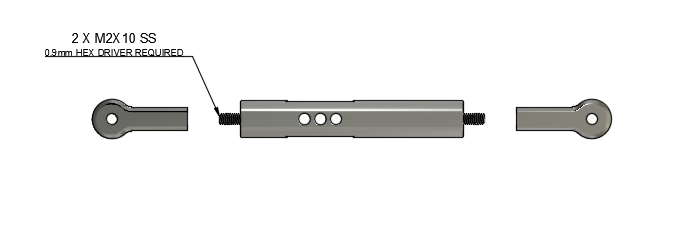

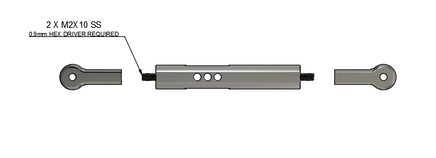

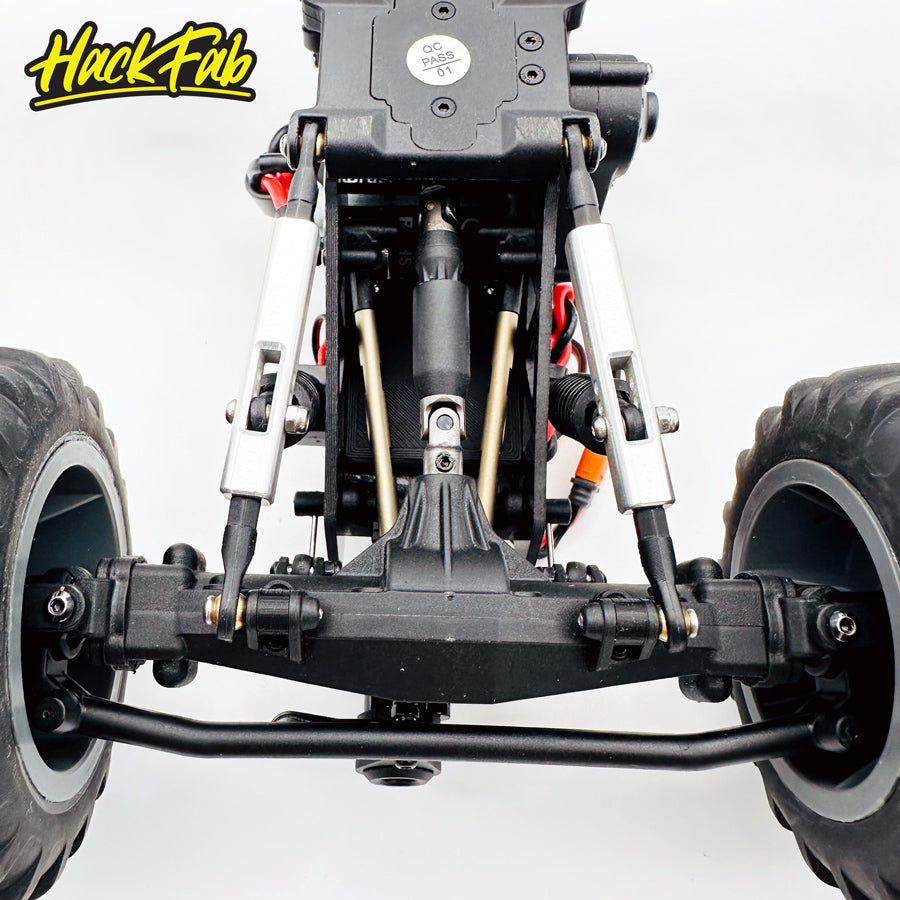

The lower links are machined aluminum. They use m2 threaded rod ends and set screws. The set screws for these are an uncommon .9mm size and will require a .9mm hex driver for assembly. The kit uses the factory upper links.

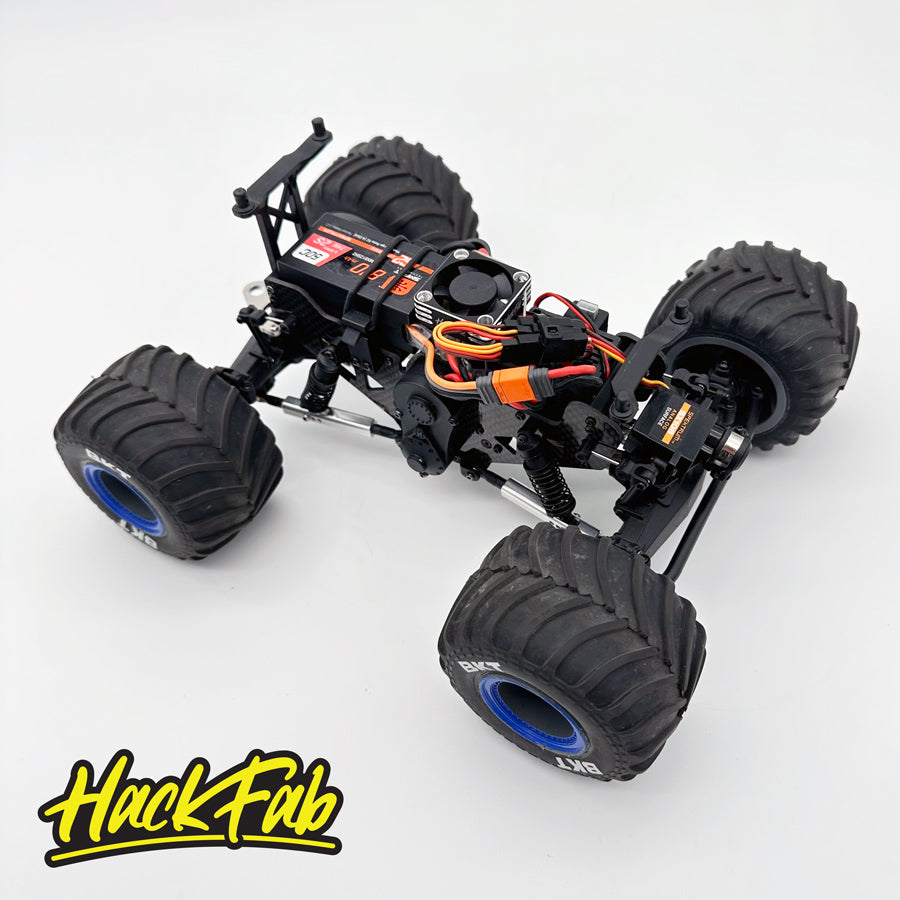

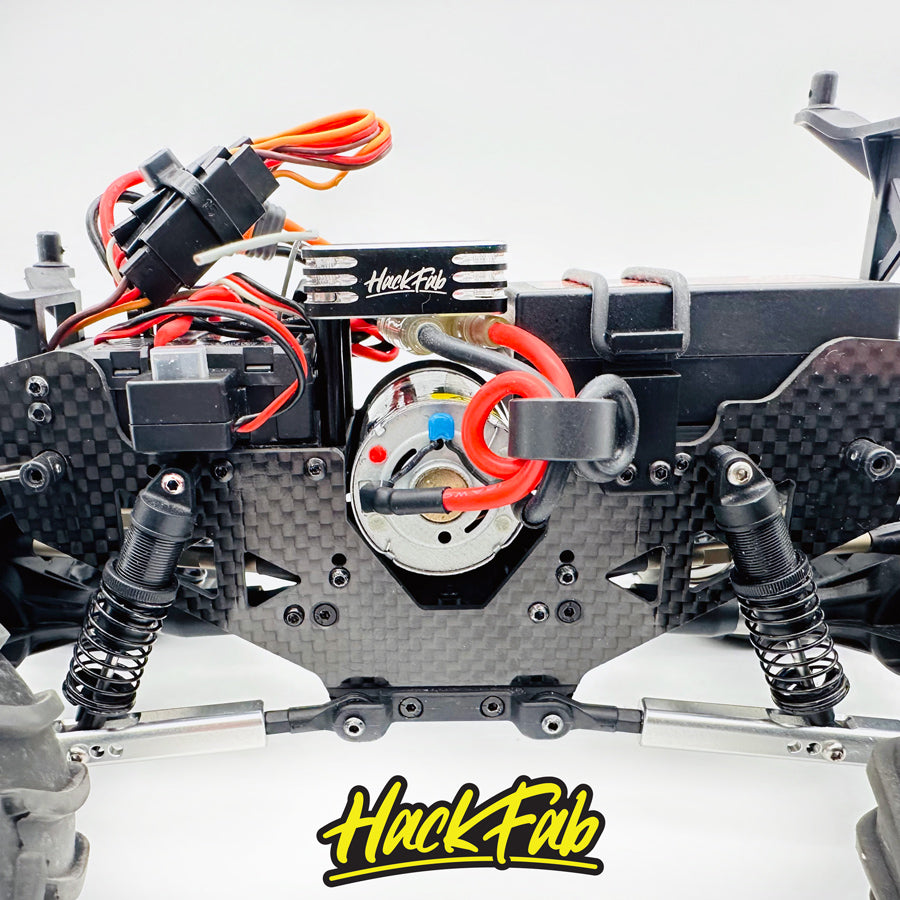

We included standoffs to mount a motor fan to the ESC plate. A fan is not included. A 30x30 fan fits.

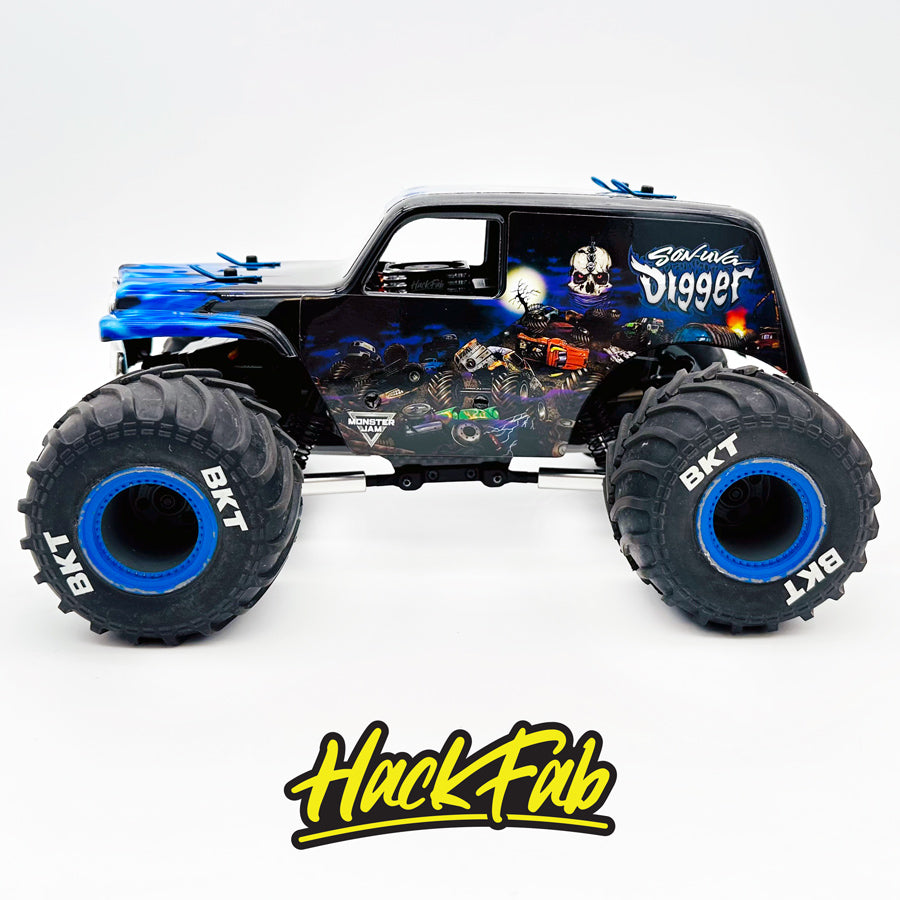

If you want a great handling, slammed, solid axle monster truck that is sure to turn heads, look no further.

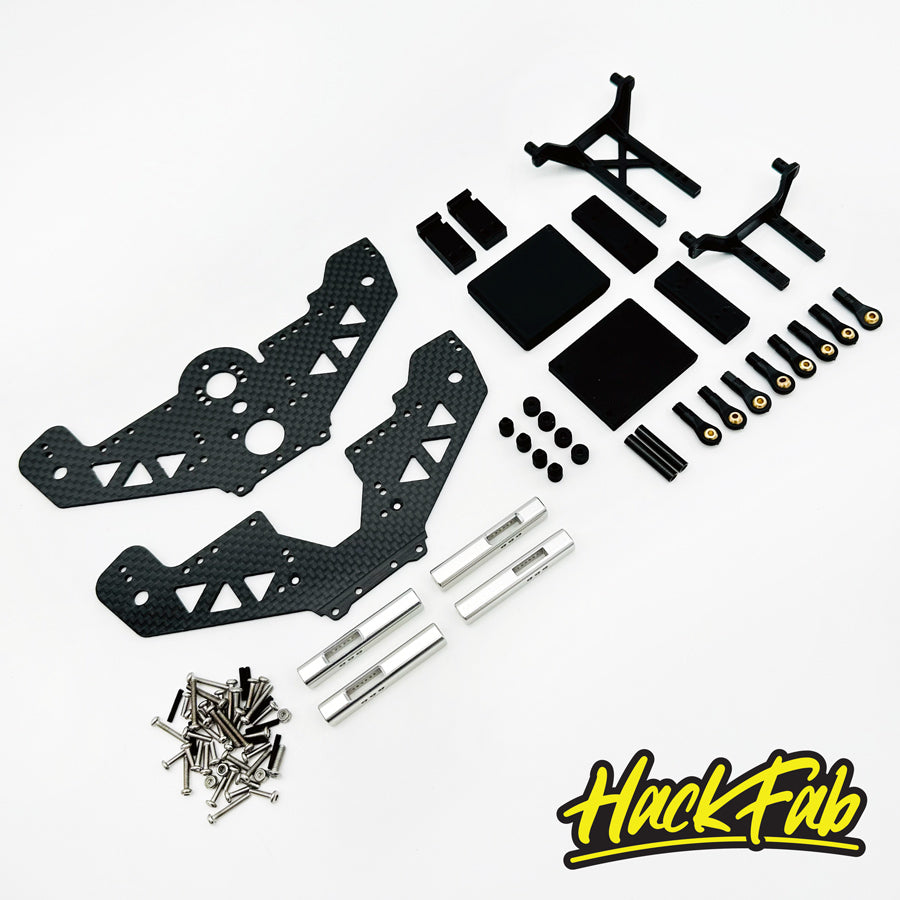

Kit Includes:
- Carbon fiber chassis side plates x2
- Machined aluminum lower links w/ rod ends
- m2.5x20mm fan standoffs
- Front/Rear body posts
- 3D printed LCG battery and ESC trays
- 3D printed shock standoffs
- 3D printed lower link spacers
- 3D printed battery hold downs
- 3D printed cross members

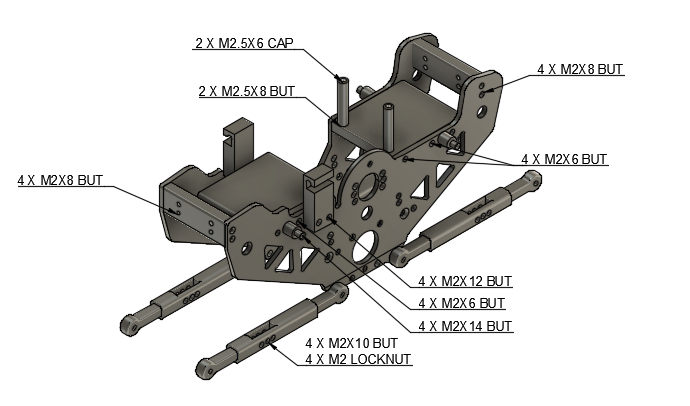

- All necessary hardware
Requires:
- Donor Losi Mini LMT truck
- 4x Losi Mini-T 2.0 / Mini-B Front shocks (TLR313000 or LOS314004 or HRAMTT52DP01 or comparable 50mm length shocks)
- .09mm Hex Driver
- 30x30mm fan (optional)

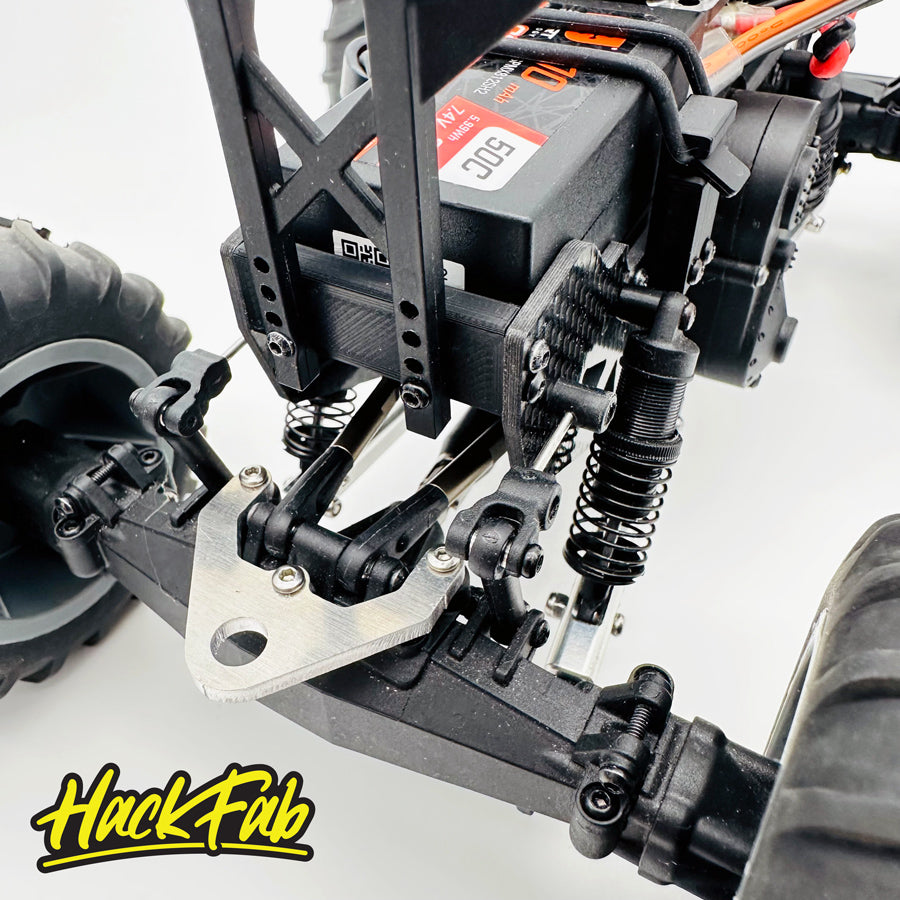

*Some photos show our optional Pulling Hitch for the Losi Mini LMT. This is not included in this kit.
