This is original Digital-3 MOD ESC you all have been waiting for! Equipped with our first generation mosfet.

Courtesy discounts will only be provided to ESC's that were purchased within 90 days. Proof of purchase is required. 2nd hand purchased items will be not be eligible.

Disclaimer for all RC drag racers: Based on the data that we collected throughout 2020, we've been able to evaluate the use of our Digital 3 ESC for drag racing purposes. Just like most if not all ESC’s in the market, the Digital 3 ESC hardware was not designed for drag racing. This was originally designed for off-road and on-road road course racing. The Digital 3 has been used to win multiple road course ROAR US national championship titles at multiple events. We are confident about the excellent reliability of this product when used for its intended purpose. Due to the popularity of the Digital-3 ESC at the highest level of RC drag racing in the country, we decided to investigate RC drag racing closer. We found that the impact of running the Digital-3 ESC or any 1/10 scale ESC for drag racing purposes can cause unprecedented damage that we have not experienced in road course racing in the past. Normally when we inspect a typical damaged ESC, we would find a single component failure or a single circuit block failure. Damaged ESC’s used for drag racing are found to have multiple component failure and/or multiple circuit block failure. This makes the ESC not cost effective to repair and in most cases not repairable at all even if we tried. Due to this finding, we would like to inform all RC drag racers that we can no longer accept requests to repair on all Digital-3 ESC’s used for drag racing purposes. In addition, R1Wurks will not cover any damage related to the use of the Digital-3 ESC in any form of RC drag racing. If the Digital 3 is used for drag racing, this will automatically void the limited warranty for this product. Any exterior visible hardware damage that requires repair like wires, switches, button, case, fan port and sensor port will be handled on a case to case basis under our discretion. Any internal/non visible damage or malfunction will be evaluated and determined by R1wurks staff. If the damage is consistent with over load or misuse to that ESC, R1wurks reserves the right to flag the said ESC as warranty void. We will still offer a courtesy discounted replacement for all ESC’s that were purchased at full retail price for one time for each ESC. We require the damaged ESC to be sent to us and received by us prior to availing the discounted replacement program. ESC’s that were purchased through the discounted replacement program are not eligible for another discounted replacement for the second time.

ITEM# 040007

ROAR BRCA EFRA APPROVED

New from R1 Motor lab is the LCG Digital-3 2S Wireless* programmable brushless speed controller. Developed using the most advanced MICROCHIP processor and a robust proprietary software, the LCG Digital-3 delivers the most technologically advanced features to date. Development of the LCG Digital-3 was focused on ultra smooth power delivery needed for modified racing as well as supreme power efficiency for our class leading line of Stock Motors. The controller offers the most advanced throttle and brake features to suit a wide range of driving styles. The unit features an A.C.L.C. (Advanced Component Level Cooling) system. This design allows individual encapsulated low resistance Mosfets (inner & outer components) to transfer heat directly to the upper heatsink. The system also comes equipped with an all new blinky mode (zero timing) for spec racing, using an advanced commutation algorithm called COOL POWER to keep the motor cool and deliver powerful, yet ultra smooth acceleration. The LCG Digital-3 boasts a redesigned case minimizing overall weight and lowering the center of gravity (LCG). We have minimized the weight from the upper case while improving heat dissipation, achieved by improving air velocity exits from all sides of the ESC case. All adjustable settings are easily programmed using the R1 WIRELESS ADAPTOR coupled with an iOS or Android app designed with an intuitive, easy to use interface. The new R1 Digital 3 app also features a super fast Live Telemetry and a built in Datalogger for after race analysis. Built in Amp draw meter for setting motor timing or for after race analysis. Using our new over the air update, firmware updates are now easily downloaded through our iOS or Android apps.

Components are subject to change without notice.

Features

LCG full aluminum case and heat sink design
Full compatibility with modified and stock racing
Superlative FET and low-resistance power PCB design
30mm fan for maximum cooling
Cool Power software/hardware upgrades increase speed while reducing motor temperature by modifying the commutation algorithm
The Built-in 2S BEC has a Maximum voltage of 6V and 7.4V.
New Auto Turbo / Boost timing setting and delay time setting
New X-Lock brake response mode and PWM / brake frequency allows various race and control types
Data port for connecting to Wireless adaptor
Wireless adaptor allows program parameter settings and firmware upgrades
LIVE ESC and motor telemetry (speed, temperature, current, voltage, RPM and battery consumption) can be stored in real time with the data log

Programmable Items

Model Type Memory
Select Battery Type
Cut Off Voltage
Power Curve
Boost Max+TB
Boost-TH. Limit
Boost Min-rpm
Boost Max-rpm
Turbo Delay
Turbo + Slope
Turbo - Slope
Acceleration
Start Power
Smooth Start Rate
Smooth Start Range
Reverse Function
Reverse Delay
M- Reverse Amount
Neutral Width
Motor Direction
Brake Response
FAN Control
Drag Brake
Min Brake Amount
Mid Brake Amount
Mid Brake Location
Max Brake Amount
Soft Brake
Brake Freq
Motor Freq
Drag Freq
Cut Off Temp
Cut Off M-Temp
B.E.C Voltage
Motor Pole Num
Gear Ratio
Tire Diameter
Motor-Wiring ABC or CBA
Units
Download
Factory Setting
Live and Maximum Voltage
Live and Maximum Temp
Max Temperature
Motor Temp
Motor Max Temp
Live and Maximum amp draw (for setting timing)
Maximum Speed
Maximum RPM
Error History

Specification

Motor Type - Sensored / 2-4 Pole Sensored
Motor Limit - >3.5T
Operating voltage - 7.4V (2S only)
Forward / Brake / Reverse - yes
Full aluminum case / heatsink - yes
Typ. Voltage Drop @20A per phase - 0.0048V
Rated Current per phase - 220A
Plugged 30x30x10mm Fan - yes
BEC Output - 6V/7.4V Continuous Current of 3A
Multi-Protection-System - yes
“Boost 0” Mode - yes
Multi-frequency system - yes
Power Wires - 12Awg
Over the air Update ability - yes
Case Size(with out fan) - 32.9 x 34.6 x 21mm
Weight(with out cable) - 47g

Wireless adaptor is necessary to make setting changes to this ESC, the program box doesn't work for the Digital-3

ROAR,BRCA and EFRA Approved

DOWNLOAD MANUAL HERE

DOWNLOAD CHEAT SHEET HERE

BLANK EDITABLE SETUP SHEET - DIGITAL 3

WIFI ADAPTOR MANUAL

APP USER GUIDE

DOWNLOAD THE APP HERE:

APP STORE (APPLE)

PLAY STORE (ANDROID)

WARNING: This product can expose you to chemicals including lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

R1wurks 90 Days Limited Warranty

IMPORTANT: BY USING YOUR R1WURKS, MOTOR, BATTERY, ESC, FAN,ACCESSORIES AND TOOL PRODUCT YOU ARE AGREEING TO BE BOUND BY THE TERMS OF THE R1WURKS 90 DAYS LIMITED WARRANTY (“WARRANTY”) AS SET OUT BELOW.

DO NOT USE YOUR PRODUCT UNTIL YOU HAVE READ THE TERMS OF THE WARRANTY. IF YOU DO NOT AGREE TO THE TERMS OF THE WARRANTY, DO NOT USE THE PRODUCT AND RETURN IT WITHIN THE RETURN PERIOD STATED IN R1WURKS RETURN POLICY (FOUND AT ) TO THE R1WURKS.COM STORE OR THE AUTHORIZED DISTRIBUTOR WHERE YOU PURCHASED IT FOR A REFUND.

HOW CONSUMER LAW RELATES TO THIS WARRANTY

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE). OTHER THAN AS PERMITTED BY LAW, R1WURKS DOES NOT EXCLUDE, LIMIT OR SUSPEND OTHER RIGHTS YOU MAY HAVE, INCLUDING THOSE THAT MAY ARISE FROM THE NONCONFORMITY OF A SALES CONTRACT. FOR A FULL UNDERSTANDING OF YOUR RIGHTS YOU SHOULD CONSULT THE LAWS OF YOUR COUNTRY, PROVINCE OR STATE.

WARRANTY LIMITATIONS SUBJECT TO CONSUMER LAW

TO THE EXTENT PERMITTED BY LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS, WHETHER ORAL, WRITTEN, STATUTORY, EXPRESS OR IMPLIED. R1WURKS DISCLAIMS ALL STATUTORY AND IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE AND WARRANTIES AGAINST HIDDEN OR LATENT DEFECTS, TO THE EXTENT PERMITTED BY LAW. IN SO FAR AS SUCH WARRANTIES CANNOT BE DISCLAIMED, R1WURKS LIMITS THE DURATION AND REMEDIES OF SUCH WARRANTIES TO THE DURATION OF THIS EXPRESS WARRANTY AND, AT R1WURKS OPTION, THE REPAIR OR REPLACEMENT SERVICES DESCRIBED BELOW. SOME STATES (COUNTRIES AND PROVINCES) DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY (OR CONDITION) MAY LAST, SO THE LIMITATION DESCRIBED ABOVE MAY NOT APPLY TO YOU.

WHAT IS COVERED BY THIS WARRANTY?

R1 Brushless Motor Lab,LLC. of Laguna Niguel, California, U.S.A. 92677 (“R1WURKS”) warrants the R1WURKS- Motor, ESC, Battery, Fans, Tools and the R1WURKS-branded accessories contained in the original packaging (“R1WURKS Product”) against defects in materials and workmanship when used normally in accordance with R1WURKS's published guidelines for a period of 90 DAYS from the date of original retail purchase by the end-user purchaser ("Warranty Period"). R1WURKS’s published guidelines include but are not limited to information contained in technical specifications, user manuals and service communications.

This Warranty does not apply: (a) to consumable parts, such as batteries or protective coatings that are designed to diminish over time, unless failure has occurred due to a defect in materials or workmanship; (b) to cosmetic damage, including but not limited to scratches, dents and broken plastic on ports unless failure has occurred due to a defect in materials or workmanship; (c) to damage caused by use with a third party component or product that does not meet the R1WURKS Product’s specifications (R1WURKS Product specifications are available at www.R1WURKS.com under the technical specifications for each product ; (d) to damage caused by accident, abuse, misuse, fire, liquid contact, earthquake or other external cause; (e) to damage caused by operating the R1WURKS Product outside R1WURKS’s published guidelines; (f) to damage caused by service (including upgrades and expansions) performed by anyone who is not a representative of R1WURKS ; (g) to an R1WURKS Product that has been modified to alter functionality or capability without the written permission of R1WURKS; (h) to defects caused by normal wear and tear or otherwise due to the normal aging of the R1WURKS Product; (i) if any serial number has been removed or defaced from the R1WURKS Product; or (j) if R1WURKS receives information from relevant public authorities that the product has been stolen or if you are unable to deactivate passcode-enabled or other security measures designed to prevent unauthorized access to the R1WURKS Product, and you cannot prove in any way that you are the authorized user of the product (eg. by presenting proof of purchase).

Important: Do not open the R1WURKS Product. Opening the R1WURKS Product may cause damage that is not covered by this Warranty. Only R1WURKS should perform service on this R1WURKS Product.

WHAT WILL R1WURKS DO IN THE EVENT THE WARRANTY IS BREACHED?

If during the Warranty Period you submit a claim to R1WURKS or an R1WURKS distributor in accordance with this warranty, R1WURKS will, at its option:

(i) repair the R1WURKS Product using new or previously used parts that are equivalent to new in performance and reliability,

(ii) replace the R1WURKS Product with the same model (or with your consent a product that has similar functionality) formed from new and/or previously used parts that are equivalent to new in performance and reliability, or

(iii) exchange the R1WURKS Product for a refund of your purchase price.

R1WURKS may request that you replace certain user-installable parts or R1WURKS Products. A replacement part or R1WURKS Product, including a user-installable part that has been installed in accordance with instructions provided by R1WURKS, assumes the remaining term of the Limited Warranty. When an R1WURKS Product or part is replaced or a refund provided, any replacement item becomes your property and the replaced or refunded item becomes R1WURKS's property.

HOW TO OBTAIN WARRANTY SERVICE?

Please access and review the online help resources described below before seeking warranty service. If the R1WURKS Product is still not functioning properly after making use of these resources, please contact an R1WURKS representative or, if applicable, an R1WURKS owned retail store ("R1WURKS Retail") or distributor, using the information provided below. An R1WURKS representative or distributor will help determine whether your R1WURKS Product requires service and, if it does, will inform you how R1WURKS will provide it. When contacting R1WURKS via telephone, other charges may apply depending on your location.

Online information with details on obtaining warranty service is provided below.

WARRANTY SERVICE OPTIONS

R1WURKS will provide warranty service through one or more of the following options:

(i) Mail-in service. If R1WURKS determines that your R1WURKS Product is eligible for mail-in service, properly pack and address your R1WURKS product, so that you may ship your R1WURKS Product to R1wurks PO BOX location. Instructions may be sent to you via email or in hard copy with the packaging material. Once service is complete, R1wurks or distributor location will return the R1WURKS Product to you. R1WURKS will pay for shipping to your location if all instructions regarding the method of packaging and shipping the R1WURKS Product are followed.

(ii) Do-it-yourself (DIY) parts service. DIY parts service allows you to service your own R1WURKS Product. If DIY parts service is available in the circumstances, the following process will apply.

(a) Service where R1WURKS requires return of the replaced R1WURKS Product or part. R1WURKS may require a credit card authorization as security for the retail price of the replacement R1WURKS Product or part and applicable shipping costs. If you are unable to provide credit card authorization, DIY parts service may not be available to you and R1WURKS will offer alternative arrangements for service. R1WURKS will ship a replacement R1WURKS Product or part to you with installation instructions, if applicable, and any requirements for the return of the replaced R1WURKS Product or part. If you follow the instructions, R1WURKS will cancel the credit card authorization, so you will not be charged for the R1WURKS Product or part and shipping to and from your location. If you fail to return the replaced R1WURKS Product or part as instructed or return a replaced R1WURKS Product or part that is ineligible for service, R1WURKS will charge your credit card for the authorized amount.

(b) Service where R1WURKS does not require return of the replaced R1WURKS Product or part. R1WURKS will ship you free of charge a replacement R1WURKS Product or part accompanied by instructions on installation, if applicable, and any requirements for the disposal of the replaced R1WURKS Product or part.

(c) R1WURKS is not responsible for any labor costs you incur relating to DIY parts service. Should you require further assistance, contact R1WURKS at the telephone number listed below.

R1WURKS reserves the right to change the method by which R1WURKS may provide warranty service to you, and your R1WURKS Product’s eligibility to receive a particular method of service. Service will be limited to the options available in the country where service is requested. Service options, parts availability and response times may vary according to country. You may be responsible for shipping and handling charges if the R1WURKS Product cannot be serviced in the country it is in. If you seek service in a country that is not the original country of purchase, you will comply with all applicable import and export laws and regulations and be responsible for all custom duties, V.A.T. and other associated taxes and charges. Where international service is available, R1WURKS may repair or replace R1WURKS Products and parts with comparable R1WURKS Product and parts that comply with local standards.

LIMITATION OF LIABILITY

EXCEPT AS PROVIDED IN THIS WARRANTY AND TO THE MAXIMUM EXTENT PERMITTED BY LAW, R1WURKS IS NOT RESPONSIBLE FOR DIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF WARRANTY OR CONDITION, OR UNDER ANY OTHER LEGAL THEORY, INCLUDING BUT NOT LIMITED TO LOSS OF USE; LOSS OF REVENUE; LOSS OF ACTUAL OR ANTICIPATED PROFITS (INCLUDING LOSS OF PROFITS ON CONTRACTS); LOSS OF THE USE OF MONEY; LOSS OF ANTICIPATED SAVINGS; LOSS OF BUSINESS; LOSS OF OPPORTUNITY; LOSS OF GOODWILL; LOSS OF REPUTATION; LOSS OF, DAMAGE TO, COMPROMISE OR CORRUPTION OF DATA; OR ANY INDIRECT OR CONSEQUENTIAL LOSS OR DAMAGE HOWSOEVER CAUSED INCLUDING THE REPLACEMENT OF EQUIPMENT AND PROPERTY, ANY COSTS OF RECOVERING, PROGRAMMING, OR REPRODUCING ANY PROGRAM OR DATA STORED IN OR USED WITH THE R1WURKS PRODUCT OR ANY FAILURE TO MAINTAIN THE CONFIDENTIALITY OF INFORMATION STORED ON THE R1WURKS PRODUCT.

THE FOREGOING LIMITATION SHALL NOT APPLY TO DEATH OR PERSONAL INJURY CLAIMS, OR ANY STATUTORY LIABILITY FOR INTENTIONAL AND GROSS NEGLIGENT ACTS AND/OR OMISSIONS. R1WURKS DISCLAIMS ANY REPRESENTATION THAT IT WILL BE ABLE TO REPAIR ANY R1WURKS PRODUCT UNDER THIS WARRANTY OR REPLACE THE R1WURKS PRODUCT WITHOUT RISK DAMAGE TO THE R1WURKS PRODUCT. SOME STATES (COUNTRIES AND PROVINCES) DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.

GENERAL

No R1WURKS reseller, agent, or employee is authorized to make any modification, extension, or addition to this Warranty. If any term is held to be illegal or unenforceable, the legality or enforceability of the remaining terms shall not be affected or impaired. This Warranty is governed by and construed under the laws of the country in which the R1WURKS Product purchase took place. R1WURKS or its successor in title is the warrantor under this Warranty.

ONE OF THE BEST ESCs ON THE MARKET! SUITABLE FOR ANY 1/10th TOURING, BUGGY, F1 AND 1/12 PAN CARS EX. TOURING CARS: (XRAY X4, AWESOMATIX A800MMX, MUGEN MTC2, YOKOMO BD11, TAMIYA 420X, ETC) BUGGIES: (ASSOCIATED B6.4/B74.1, XRAY XB2/XB4, YOKOMO CAL/DTM KITS, SCHUMACHER LD2/CAT L1, TLR 22 5.0/22X-4 ETC) F1 CARS: (XRAY X1, SCHUMACHER ICON, EXOTEK F1 ULTRA, SERPENT F110 SF4, TAMIYA TRF103, ETC) 1/12 PAN CARS: (XRAY X12, SCHUMACHER ECLIPSE 4, ETC)

This product produces high amounts of energy and potentially very dangerous. Please read the manual and read the safety instructions before use.

WARNING: This product contains a chemical known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov

Description above is subject to change without notice.

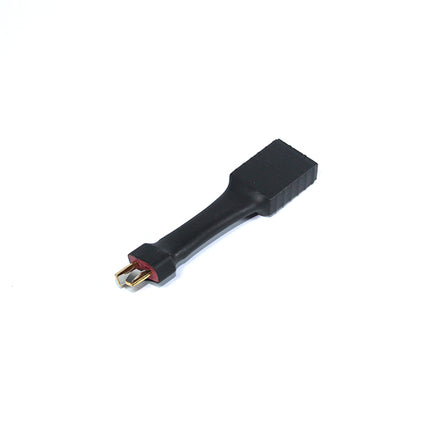

Racers Edge Battery/ESC Adapter: Female TRX HC to Male T-Plug
